SNLX12V100BT

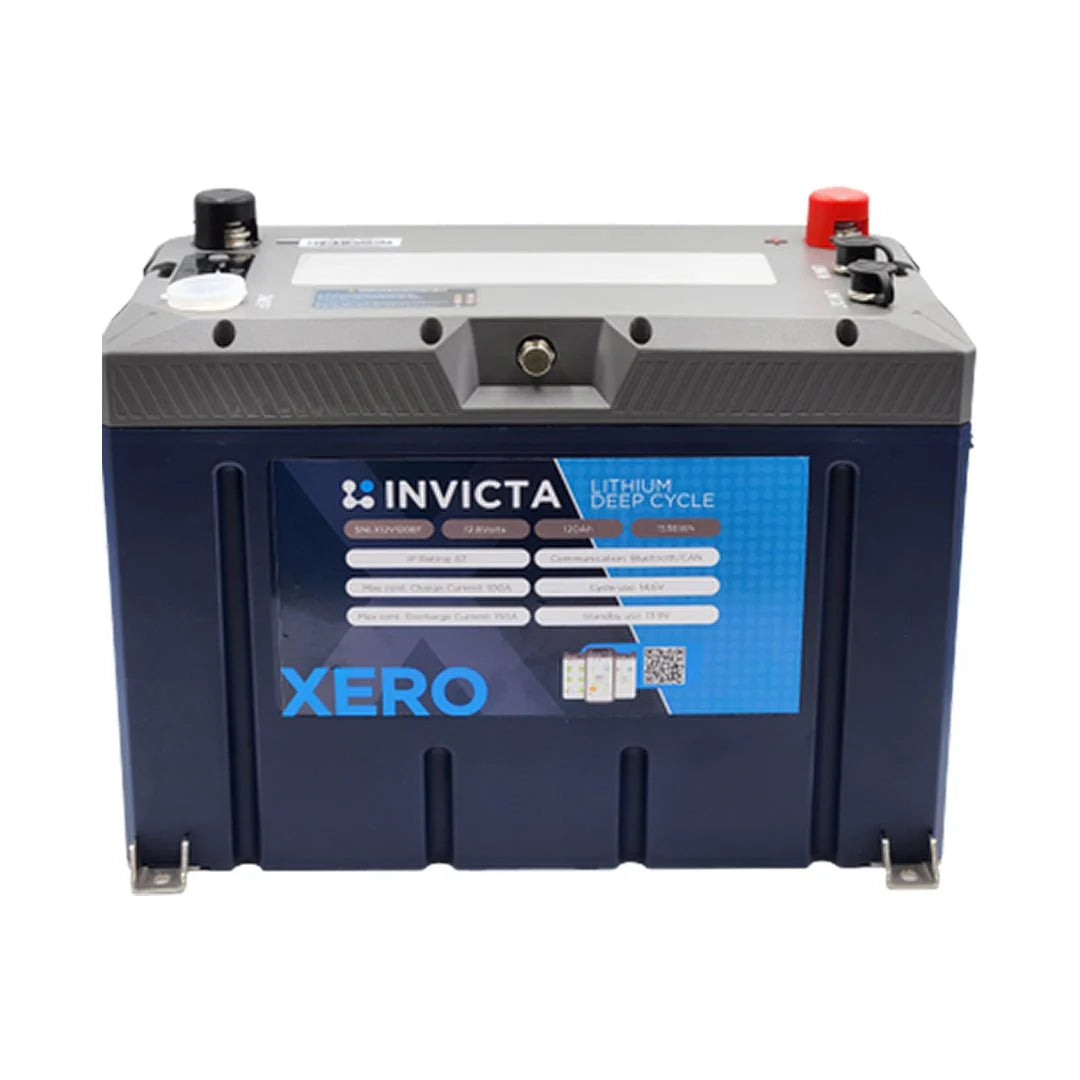

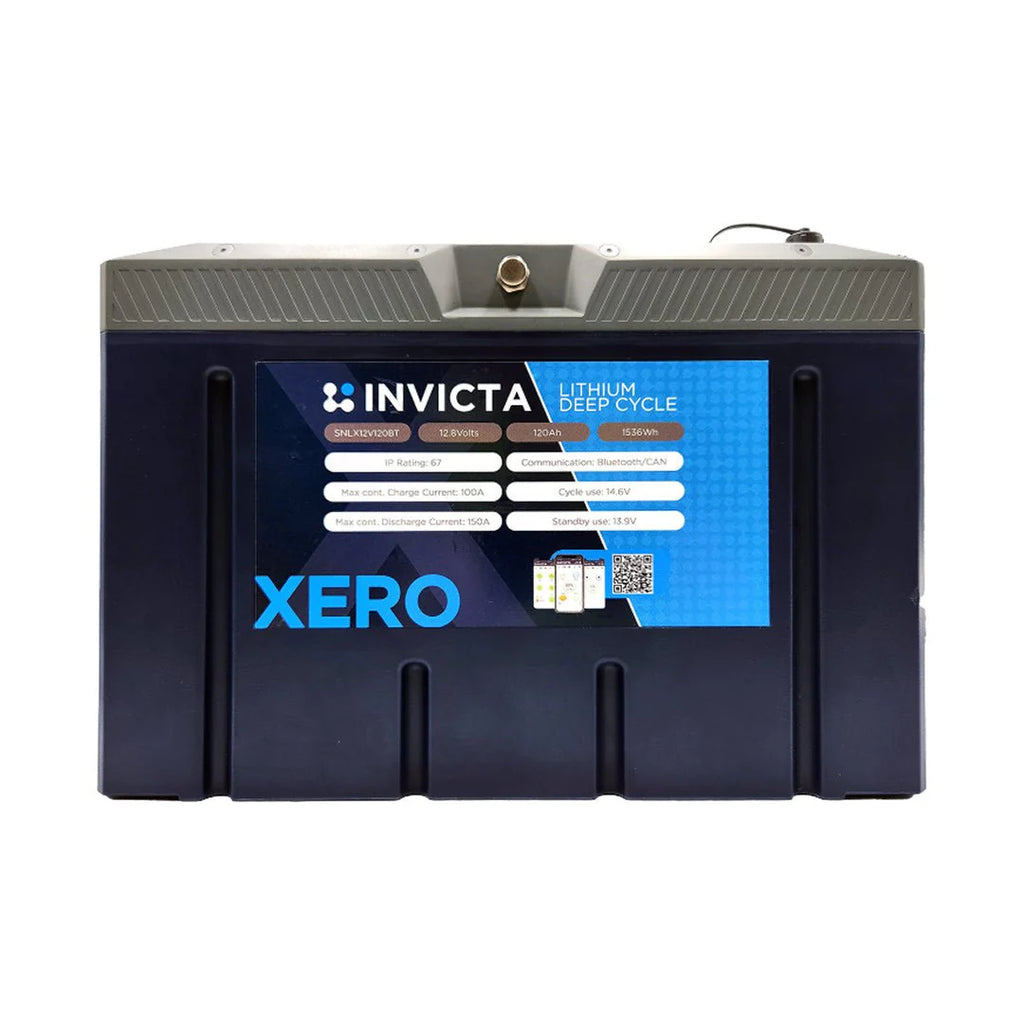

Invicta Xero 12V100AH Bluetooth/CAN

About Invicta Lithium

The Invicta Xero 12V range has been specifically designed for
replacement of similar size Lead acid batteries. The Xero range uses
all the benefits of Lithium Iron Phosphate (LiFePO4) technology
and pushes the limits in communication, power, safety and security
with its advanced battery technology.

Features & Benefits

• Large number of cycles >3000 (100% DoD)
Up to 10 times cycle life of SLA lowering your total cost of
ownership

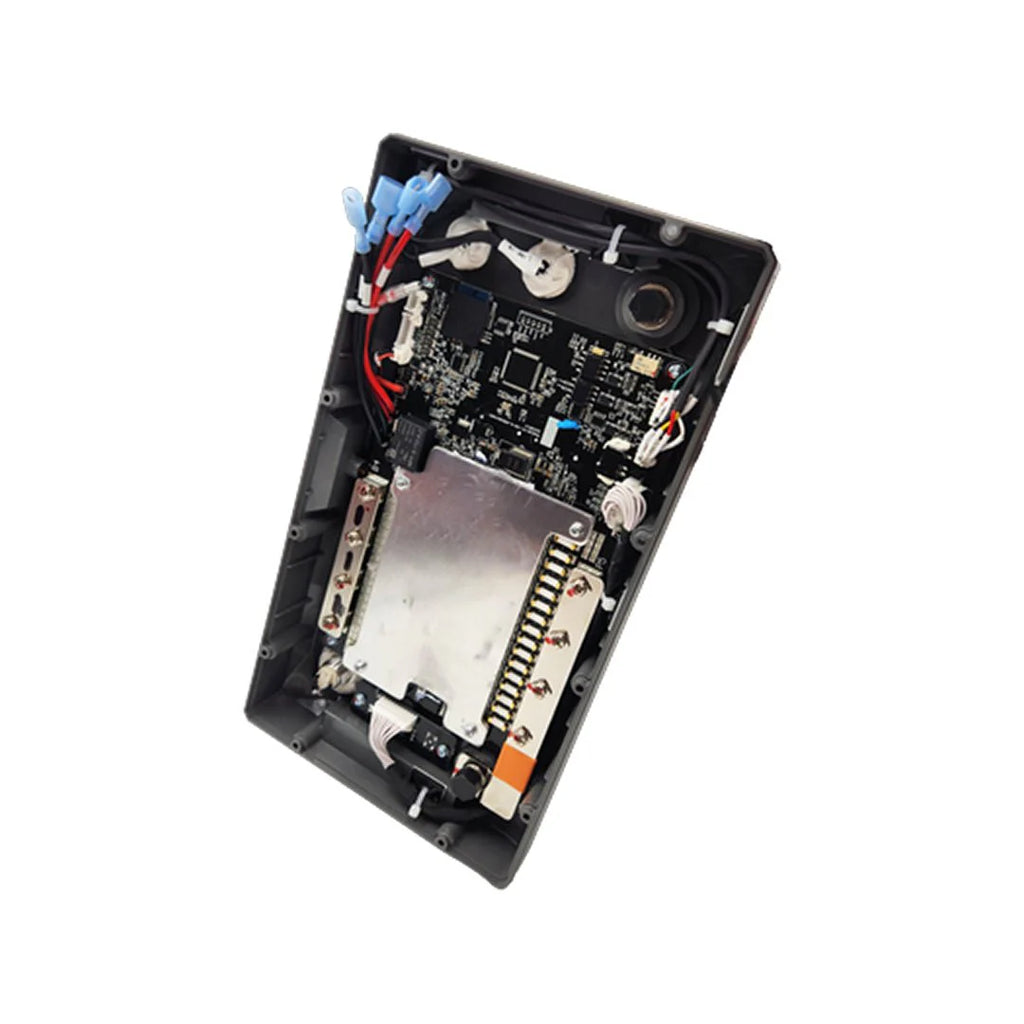

• Safe and stable chemistry & Integrated BMS
The use of LiFePO4 along with the integrated BMS ensures
protection against over charge / discharge, temperature and
short circuit providing the highest degree of safety

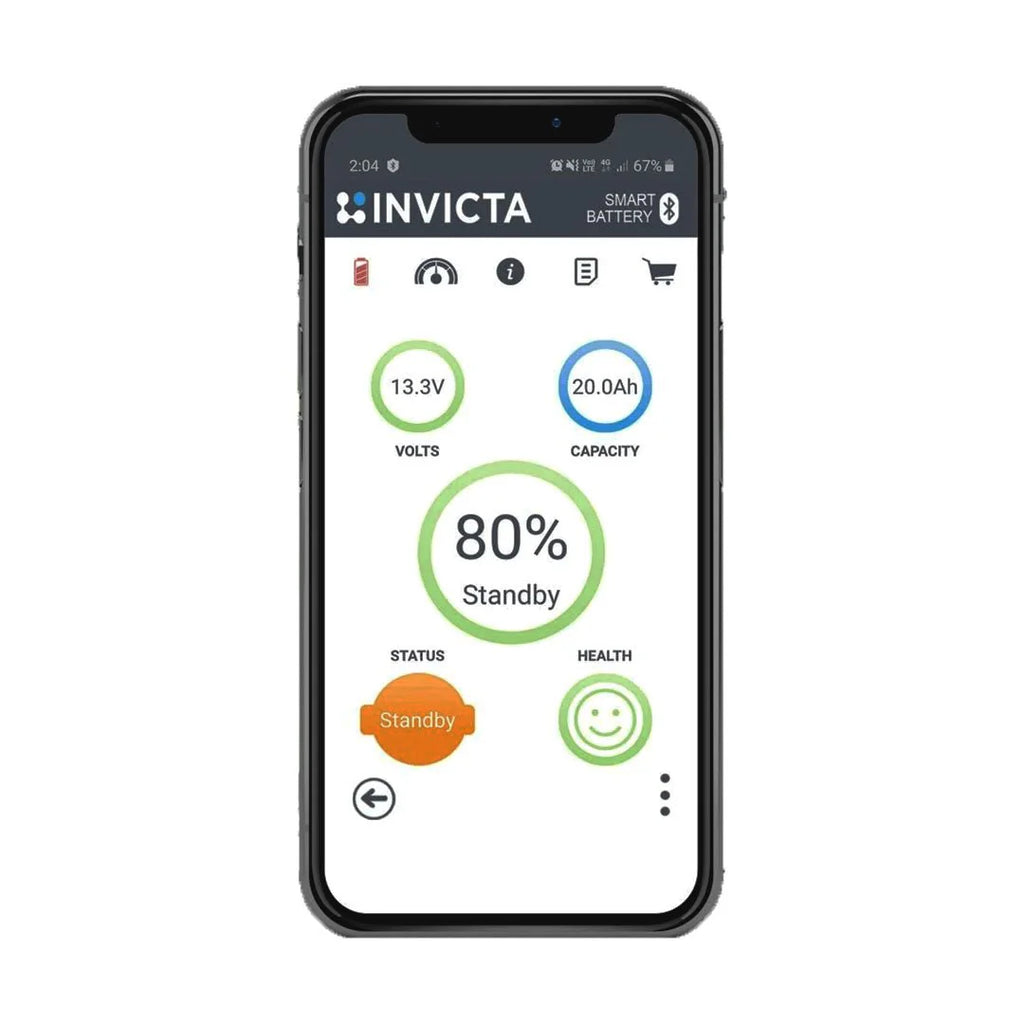

• More communication possibilities with Bluetooth and open
CAN bus, this makes connecting devices even easier.

• High energy density (less than half of the weight of SLA)
Lowering total weight of application

• Detachable mounting feet
• Secure your battery to the application with detachable
mounting feet. Simply remove/attach with a screw driver.

• Sealed from the Australian elements
IP67 rated

• More power and customisation with the ability to connect 4
in series, or 16 in parallel, or up to 4 in series and 4 in parallel.
Max discharge has been increased to 150A (Pulse 500A @ 3
seconds)

Specifications

Nominal Voltage 12.8v
Nominal Capacity (250C, 0.33C) 100Ah
Terminal M8
Length (mm) 308 ± 2mm
Width (mm) 168 ± 2mm
Height (mm)/Terminal Height 211/220 ± 2mm
Weight 12.5kg
Max Charge Voltage 14.5 ± 0.1V
Standby 13.8 ± 0.1V
Cut off Voltage 11V
Max. Discharge Current 150A
Max. Pulse Discharge Current (3 Sec) 500A
Max. Charge Current 100A
Cycle Life (100% DoD) > 3000
Operating Temp - Charge 0 - 600C
Operating Temp - Discharge -20 - 550C
Short Circuit Release Load Release
Max. Series / Parallel Configuration* 4S/16P/4S+4P
Communication Bluetooth and
CAN/RS485
Certification IEC62619
IP Rating 67
