UTX-A09 | Pro Alpine Hi-Res Audio Digital Media Receiver

  • Sale
  • Regular price $999.95
Tax included.

Hi-Res Audio Digital Media AM/FM Receiver with Bluetooth and Dual USB


*Special Order* | Owners Manual |


Special order only, please contact the team at Phatt Audio Concepts.


UTX-A09 PRO Hi-Res Audio Digital Media AM/FM Receiver with Bluetooth and Dual USB

Built for audiophile purists and music lovers the UTX-A09 PRO is designed without compromise. Ensuring ultimate sound quality performance the UTX-A09 PRO is engineered with high-end audio circuitry and is Hi-Res Audio certified to playback FLAC, WAV and APE high-resolution audio files with support of sampling rates up to 24Bit/192kHz without down-sampling.

Moreover, the UTX-A09 PRO has incredible versatility, functioning as a stand-alone head unit or can be added to an OEM system. Features include a built-in amplifier, AM/FM Tuner, Bluetooth (4.0) hands-free and music streaming, dual USB inputs, iPod/iPhone connectivity and an auxiliary input with ‘navi mix’ function allowing voice guidance to be heard when using OEM navigation.

High-end sound tuning capabilities include digital time correction, digital crossovers ready for a 3-way active speaker system setup, 9 band parametric EQ, MediaXpander HD and TuneIt App ready for sound tuning via a smartphone. The 3 pre-outs (4 Volt) with subwoofer level control allows for expansion to multiple power amplifiers, plus the optical and SPDIF digital coax output enables connection to an external audio processor for ultra-high-end system configurations.


A unique high-end design that suits a multitude of installation applications

Perfect for stealth, vintage or exotic vehicle applications the stunning 2.4-inch TFT display controller has a slim profile which can be mounted virtually anywhere and for bespoke installations the included flush mount bezel can be utilised. The black box can be installed into a 1-DIN space or hidden away in a glove-box compartment or other discrete location such as under a seat or dashboard within a distance limited to the 2.5mtrs controller display cable length.

CD Standard Sampling Rate

CD standard provides excellent  sound quality with a sample rate 16Bit/44.1kHz and a frequency range typically 20Hz~20kHz.

Hi-Res Sample Rate (192kHz/24Bit)

Hi-Res Audio has remarkable high definition with sample rates up to 24Bit/192kHz and an extended frequency range 20Hz~40kHz.

Hi-Res Audio sound quality exceeding CD, a realistic and high-definition sound experience faithful to the original studio recording

The Hi-Res Audio certification is the industry benchmark for which has been standardised through JAS (Japan Audio Society). In summary, it is the collaboration of digital processes and formats that allow the encoding and playback of high-definition music files which require higher sampling rates and wider frequency dynamic range compared to what is found on typical CDs.

Hi-Res Audio encompasses the playback of high-resolution music such as FLAC, WAV or APE files that contain high sampling rates of 24Bit/192kHz (above the CD standard 16Bit/44.1kHz). These audio files can be reproduced with high fidelity sound via the UTX-A09 PRO and companioned with Hi-Res Audio certified speakers and amplifiers.

Listening to Hi-Res Audio allows you to feel every emotion and immerse in the realistic nuances and fine details of your favourite artist’s original studio performance which is reproduced in high-definition sound. Furthermore, Hi-Res Audio has absolutely no distortion and incredible dynamics for an authentic and exhilarating audiophile listening experience.


Easy to use controller to select sources, browse music and make sound adjustments

Controlling the UTX-A09 PRO is a simple and easy task. The hard keys provide instant control of main functions such as phone and track up/down selection. Moreover, the rotary encoder makes volume adjustment, selecting menus and sources, as well as browsing through music your and phone book intuitive and fast. The vibrant 2.4-inch display delivers a rich user interface experience displaying Hi-Res Audio info, album artwork, artist and song titles. Selecting between preset EQ and MediaXpander HD modes is a breeze and on-the-go sound adjustments is easy and effective too.

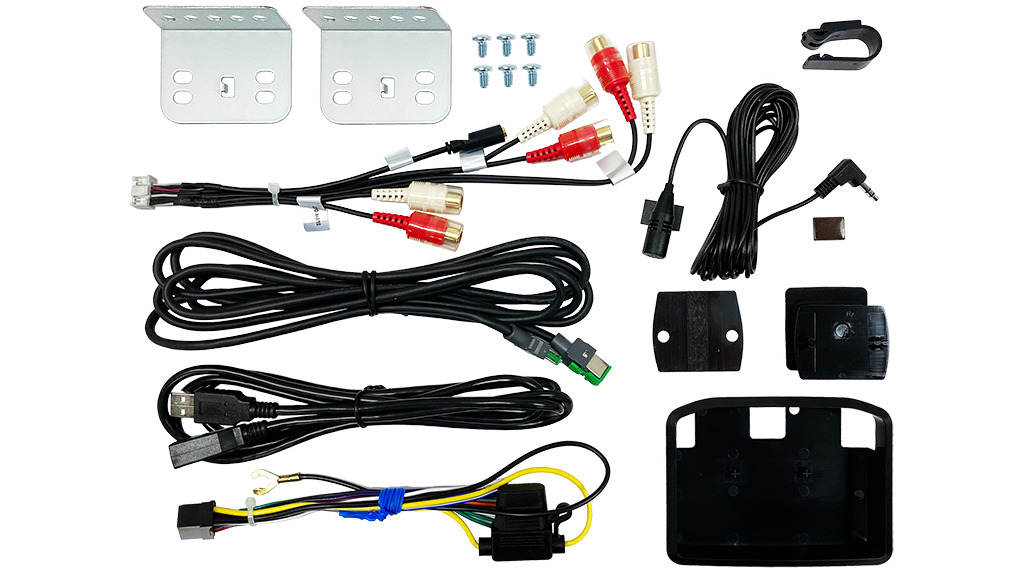

All parts included for an OEM add-on system or bespoke custom installation

The UTX-A09 PRO gives you virtually limitless installation flexibility when compared to a typical 1-DIN head unit. The slim profile 2.4-inch TFT display controller is separate from the black box which can be fitted up to 2.5mtrs away. Furthermore, the display controller flush mount housing allows for the  bespoke fitment into a flat surface.


Hi-Res Audio solution for premium vehicles equipped with factory navigation

Vehicles equipped with a factory navigation system and integrated vehicle controls often cannot be changed. The UTX-A09 PRO keeps your OEM system intact by allowing it to be added to or integrated with the OEM system for pure high-end sound and additional functions such as Bluetooth (4.0) for music streaming and hands free phone with compatibility of newer smartphones. Plus, the auxiliary input with ‘nav mix’ lets you hear voice guidance from the factory navigation system.

High-end connections provide the foundation for the ultimate Hi-Res Audio system

The ultimate audiophile experience is awaiting, the UTX-A09 PRO enables playback of your Hi-Res Audio music with sampling rates up to 24Bit/192kHz, all while Alpine Hi-Res Audio certified speakers and amplifiers reproduce sound recordings with extraordinary accuracy and definition, including nuances in upper harmonics way beyond the typical 20Hz-20kHz range.



Digital Time Correction
This unit is able to delay the audio signal to the speakers closest to the listener. This effectively creates a perception of increased distance for those speakers. The listener can be placed at an equal distance between the left and right speakers for optimum staging.

Made for iPhone
It’s simply the best way to control your iPhone in the car – enjoy seamless operation of your iPhone in addition to full control of all your favourite media sources. Control all search options of your iPhone directly from the receiver, via Artist, Playlist, Album, Song, Genre, Podcast, or Composer and more.

24 bit D/A converter
To ensure only the best sound quality, premium Alpine head units use high-resolution Burr Brown 24-Bit Digital-to-Analogue conversion. The 24-Bit DAC decodes the digital signal into amazing sound reproduction, allowing for an incredible Signal to Noise ratio of 105dB

3 Preouts
The three sets of RCA PreOut lets you build a full-fledged sound system to add multiple amplifiers, speakers and subwoofers for a truly remarkable premium sound system. The subwoofer control allows you to adjust the bass level intensity to exactly how you like it.

4V Preouts
Alpine’s 4V Pre-Out stage ensures ultra clean signal transmission from the head unit to amplifiers. When gain matched to amplifiers, the high level 4Volt RCA output virtually eliminates noise and distortion, even at high volume levels.

9-Band Parametric EQ
Parametric Equalisers are multi-band variable equalisers which allow users to control the three primary parameters: amplitude, centre frequency and bandwidth.

Android Compatible
Media and app control from Android smartphones is supported through this device, making it a great unit for smartphone users.

Bass Engine SQ
The BASS button takes you directly to Alpine’s advanced bass level adjustment function. As you choose one of the five levels, it automatically adjusts frequency cutoff, Q factor and subwoofer level for optimum sound quality. Choose from Standard, Punch, Rich, Mid Bass or Low Bass.

Get Bluetooth in your car for full operation of your mobile phone from the head unit. Drivers can keep their phone in their pocket and keep their hands on the wheel while receiving calls and getting a clear view of the caller ID, phone book and other information on the display. A convenient and safe way to use mobile phones while driving.

High Pass (HP) Crossover for better sound. The high pass crossover cuts bass frequencies sent to the speaker outputs and the full-range pre-outs. Suited for subwoofer systems, the HP filter enables speakers to perform more efficiently within their reproduction range and limits bass response cancellation.

FLAC High Resolution Music Playback
FLAC (Free Lossless Audio Codec) is a lossless compression format. Digital audio compressed by FLAC's algorithm can typically be reduced to 50-60% of its original size and decompressed to an identical copy of the original audio data without any data loss, allowing for superior sound quality.

Front USB Connection
The Front USB connection provides playback of MP3/WMA/AAC music files stored on a USB memory devices.Folders and songs from USB memory are automatically put in alphabetical order.

Made for iPod and iPhone
It’s simply the best way to control your iPhone or iPod in the car – enjoy seamless operation of your iPhone or iPod in addition to full control of all your favorite media sources. Control all search options of your iPhone or iPod directly from the receiver, via Artist, Playlist, Album, Song, Genre, Podcast, or Composer and more.

MediaXpander (MX) is Alpine’s exclusive technology that restores sound quality lost in music file compression or original recording process. No adjustments are necessary; simply at a touch of the display select MediaXpander and your music will instantly sound more alive, rich and natural.

Rear USB for iPhone/iPod
Connect your iPhone/iPod using rear USB input, the included USB cable can be conveniently located to the centre console or glove compartment for easy access and connection to your device.

Sub Woofer Level
Ability to control the Sub Woofer Levels.

USB Cable Included
A USB extension cable is included to route the connector to a convenient location such as the glove box or centre console.

Play your compressed music files. When you purchase music from the Internet and burn it onto CDs, you naturally want to play it in your car. Select Alpine head units are fully compatible and ready to handle your compressed music files: AAC, MP3 and WMA. Plus, with Alpine’s Built-in high power amps and Alpine speakers, they’ll sound better than ever.




  • Memory Presets: Preset Stations (18 Total; 12 Stations for each band FM and AM
  • Memory: Auto Memory


  • Built-in BLUETOOTH® Module
  • HFP (Hands-Free Profile) Compatible
  • Streaming Music: A2DP (Advanced Audio Distribution Profile) Compatible
  • Streaming Music Control: AVRCP (Audio / Video Remote Control Profile) Ver.1.5 Compatible
  • Connection: SSP (Simple Secure Pairing) Supported
  • Phone Book: Phone Book Synchronisation
  • Speed Dial: 4 Preset Memory (per phone)
  • Multiple Phone Number Registration: 4 Phone Numbers can be stored for one name
  • Device Name Display
  • Call History Display: Outgoing Calls / Incoming Calls / Missed Calls
  • Signal Strength Indicator
  • Battery Level Indicator
  • Microphone Included

Made for iPod® / iPhone®

  • Music Playback
  • Available Selections: Playlist / Artist / Album /Song / Podcast / Genre / Composer / Audiobook / iTunes Radio
  • Repeat

USB Media Connection

  • USB Connection: USB Extension Cable Included
  • Music Playback: FLAC/MP3/WMA/AAC/WAV/APE compatible
  • File / Folder Name Search
  • Folder Up / Down
  • Repeat

Sound Tuning

  • Bass Engine SQ
  • Subwoofer Level Adjustment
  • Subwoofer Phase Select
  • 4V High Voltage PreOut
  • Equaliser: Flat (Initial Setting), Pops, Rock, News, Jazz, Hip Hop, Easy Listening, Country, Classical, Customise
  • Dual HD EQ (9-band Parametric Equaliser front/rear)
  • 6 Channel Digital Time Correction
  • Digital Crossover Setting
  • MediaXpander HD
  • Easy, Step-by-Step Sound Customisation
  • Alpine TuneIt App ready


  • Power Output: 4 x 22 W Power Amplifier
  • 3 PreOuts (4V)
  • AUX-In: 1 AUX Input (3.5mm micro jack)
  • Aux Input Navi Mix Level Adjustment (0~12)
  • Steering Wheel Remote Control Function (via optional steering wheel interface)
  • Remote Control Ready (Optional)
  • Menu Language: 2 Languages, English / Chinese (Initial Setting)
  • Auto Dimmer
  • Power Antenna Lead


FM Tuner

  • Tuning Range: 87.5 – 108.0 MHz
  • Mono Usable Sensitivity: 15.8 dBf (1.7 µV / 75 ohms S/N: 30dB)
  • Signal-to-Noise Ratio: 60 dB

AM Tuner

  • Tuning Range: 531 – 1,602 kHz
  • Sensitivity: 32 µV (S/N: 20dB)
  • Signal-to-Noise Ratio: 50 dB


  • USB Requirements: USB 2.0
  • Max. Power Consumption (Rear USB): 1 A
  • File System: FAT 16/32, exFAT
  • Signal-to-Noise Ratio: 95 dB
  • Max. number of songs that can be played back (Total number of songs in front and rear USB): 10,000
  • MP3 Decoding: MPEG AUDIO Layer-3
  • WMA Decoding: Windows Media™ Audio
  • AAC Decoding: AAC-LC format “.m4a” file
  • WAV Decoding: Waveform sound file
  • FLAC Decoding: Free Lossless Audio Codec
  • APE Decoding: Monkey’s audio


  • BLUETOOTH® Version: Bluetooth V4.0


  • Power Requirement: 14.4 V. DC (11-16V allowable)
  • Power Output: 22W x 4 (1kHz, 5% THD, 4 Ω load, 2ch test)
  • Bass: ±9.1 dB at 100 Hz
  • Treble: ±9.1 dB at 10 kHz
  • Weight: 0.8 kg

Sound Tuning

  • Subwoofer Level Adjustment: 0 to +15
  • Subwoofer Phase Setting: 0° or 180°
  • High PassFilter: 1 k / 1.2 k /1.6 k / 2 k / 2.5 k / 3.2 k /4 k / 5 k (Initial Setting) / 6.3 k / 8 k / 10 k / 12.5 k / 16 k / 20 k (Hz)
  • High PassFilter (Slope): Off / -6 / -12 / -18 / -24 dB/oct.
  • Mid High Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 / 315 / 400 / 500 / 630 / 800 / 1 k / 1.2 k /1.6 k / 2 k / 2.5 k / 3.2 k /4 k / 5 k (Initial Setting) / 6.3 k / 8 k / 10 k / 12.5 k / 16 k / 20 k (Hz)
  • Mid High Pass Filter (Slope): Off / -6 / -12 oct.
  • Mid High Pass Filter (Gain): -12 to 0 dB
  • Low/Mid Low Pass Filter*: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 / 100 / 125 / 160 / 200 / 250 / 315 / 400 / 500 (Initial Setting) / 630 / 800 (Hz)
  • Low Pass Filter: 20 / 25 / 31.5 / 40 / 50 / 63 / 80 (Initial Setting) / 100 / 125 / 160 / 200 (Hz)
  • Low Pass Filter (Slope): Flat**/ -6 / -12 oct.
  • Low Pass Filter (Gain): -12 to 0 dB
  • Time Correction: 0.0 – 9.9ms (0.1ms step)
  • Parametric Equalizer (Band 1): 20 – 100 Hz (63 Hz)
  • Parametric Equalizer (Band 2): 63 – 315 Hz (125 Hz)
  • Parametric Equalizer (Band 3): 125 – 500 Hz (250 Hz)
  • Parametric Equalizer (Band 4): 250 – 1k Hz (500 Hz)
  • Parametric Equalizer (Band 5): 500 – 2k Hz (1 kHz)
  • Parametric Equalizer (Band 6): 1k – 4k Hz (2 kHz)
  • Parametric Equalizer (Band 7): 2k – 7.2k Hz (4 kHz)
  • Parametric Equalizer (Band 8): 5.8k – 12k Hz (8 kHz)
  • Parametric Equalizer (Band 9): 9k – 20k Hz (16 kHz)
  • Parametric Equalizer (Gain): 0 to +15

* The cut-off frequency setting of MID LOW should not be more than that of MID HIGH.

** In the 3-way mode, HIGH does not correspond to FLAT.

Headunit Size

  • Width: 178 mm
  • Height: 50 mm
  • Depth: 146 mm

Controller Size

  • Width: 95 mm
  • Height: 69 mm
  • Depth: 20 mm

Please note: Due to continuous product improvement, specifications and design are subject to change without notice.
