Hybrid Audio Technologies
Unity 6.5" Convertible Component Set
Unity was designed for the discerning individual interested in a product between the Imagine and Legatia product lines. Unity takes the Imagine systems reviewed by Car Audio & Electronics Magazine as “one of the top-11 best bargain speakers available” and improved it with Legatia-level enhancements.
The efficacy of the Unity series is due in large part to the incorporation of several design tenets from the Legatia series. The Unity series offers incomparable performance in its price range, boasting exceptional power handling and midbass authority, with an accurate tonal character and spectral balance any music lover will appreciate.
Unity sets include the exceptional Unity U1 competition-grade tweeters. The U1 driver is a 25mm diameter impregnated silk textile dome neodymium tweeter with high-loss rubber suspension for an exceptional polar response.

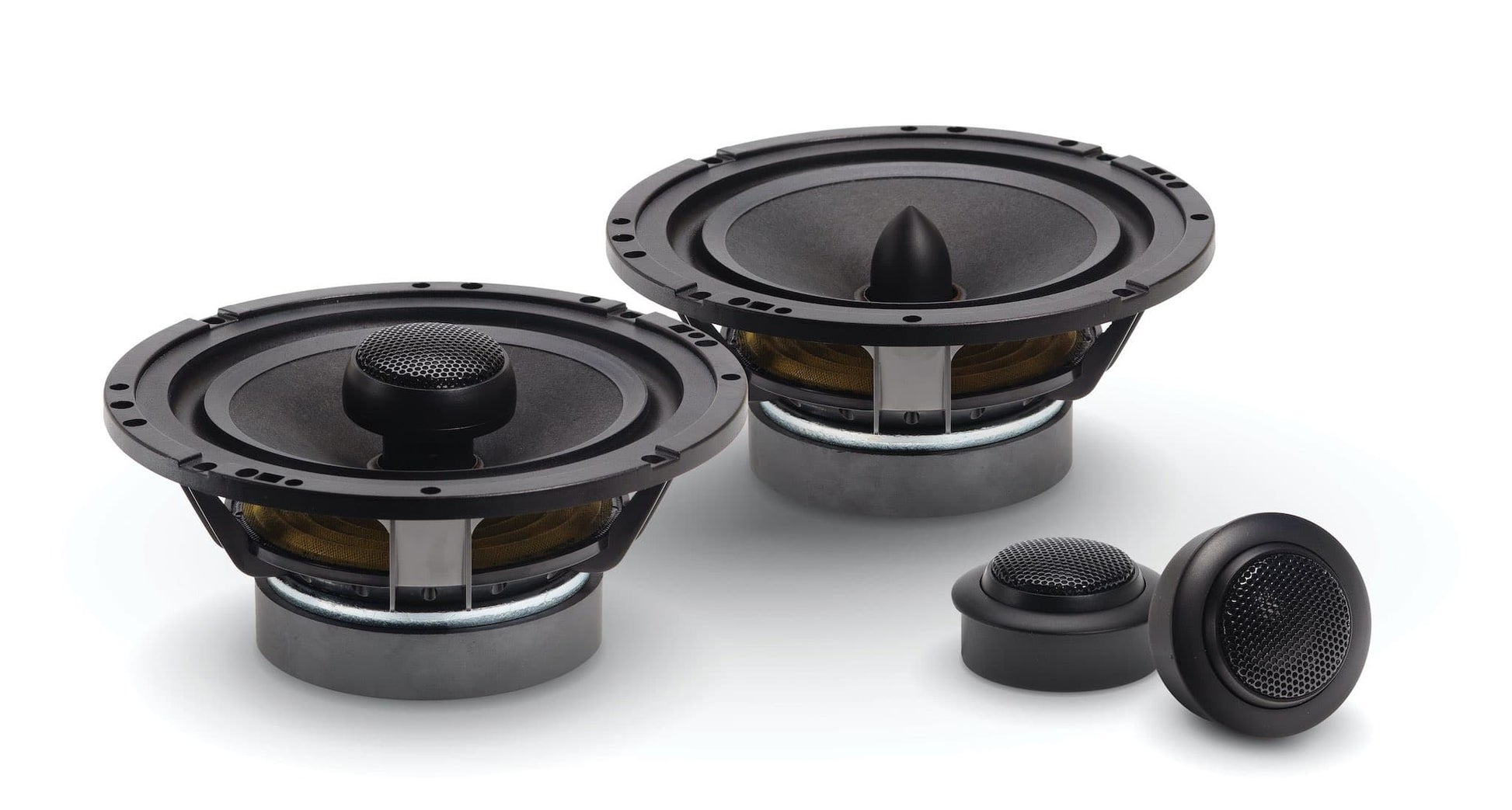

Includes:
- 1 Pair – U6V2 6.5-Inch Midbass Drivers
- 1 Pair – U1 Tweeters
- Tweeter conversion hardware
- Mounting hardware
Specifications
| Model / Site Link | Unity U65.2 |
| Size | 6.5-inch |
| Availability | Ready to Ship |
| U.S. Pricing | 349.99 |
| Description | Coaxial Convertible Component with Tweeter |
| Image Links | Unity Images |
| Mechanical Line Drawings | Unity Line Drawings |
| Frequency Response Graphs | Unity Frequency Graphs |
| Overall Diameter | 165 mm |
| Mounting Depth | 68.8 mm |
| Bolt Circle Diameter | 156 mm |
| Mounting Hole | 140 mm |
| Pnom (Watts) | 40 |
| Pmax (Watts) | 80 |
| Freq. Response | 55 Hz - 6.5 kHz |
| Sensitivity at 2.83 V/1 meter. | 93.2 dB |
| Mms | 10.5 g |
| Cms | 403 μM/N |
| BL (Series / Parallel) | 5.5 T*m |
| Voice Coil Diameter | 25.5 mm |
| Tweeter voice coil diameter | |
| Impedance | |
| Fs | 75 Hz |
| Qms | 4.506 |
| Qes | 0.679 |
| Qts | 0.59 |
| Xmax (two-way) | 12 mm |
| Vas | 8.1 L |
| Sd | 11.882 mm2 |
| Diaphragm material | |
| Frame/body material | Cast ABS |
| Motor Material | |
| Grilles | Included |
| Suggested Power w/ crossover | 150 Watts |
| Suggested crossover @ 24 dB | 60 Hz |
| Minimum crossover @ 24 dB | |
| Recommended Airspace (per driver) | 0.9 ft^3 Free Air / IB |
