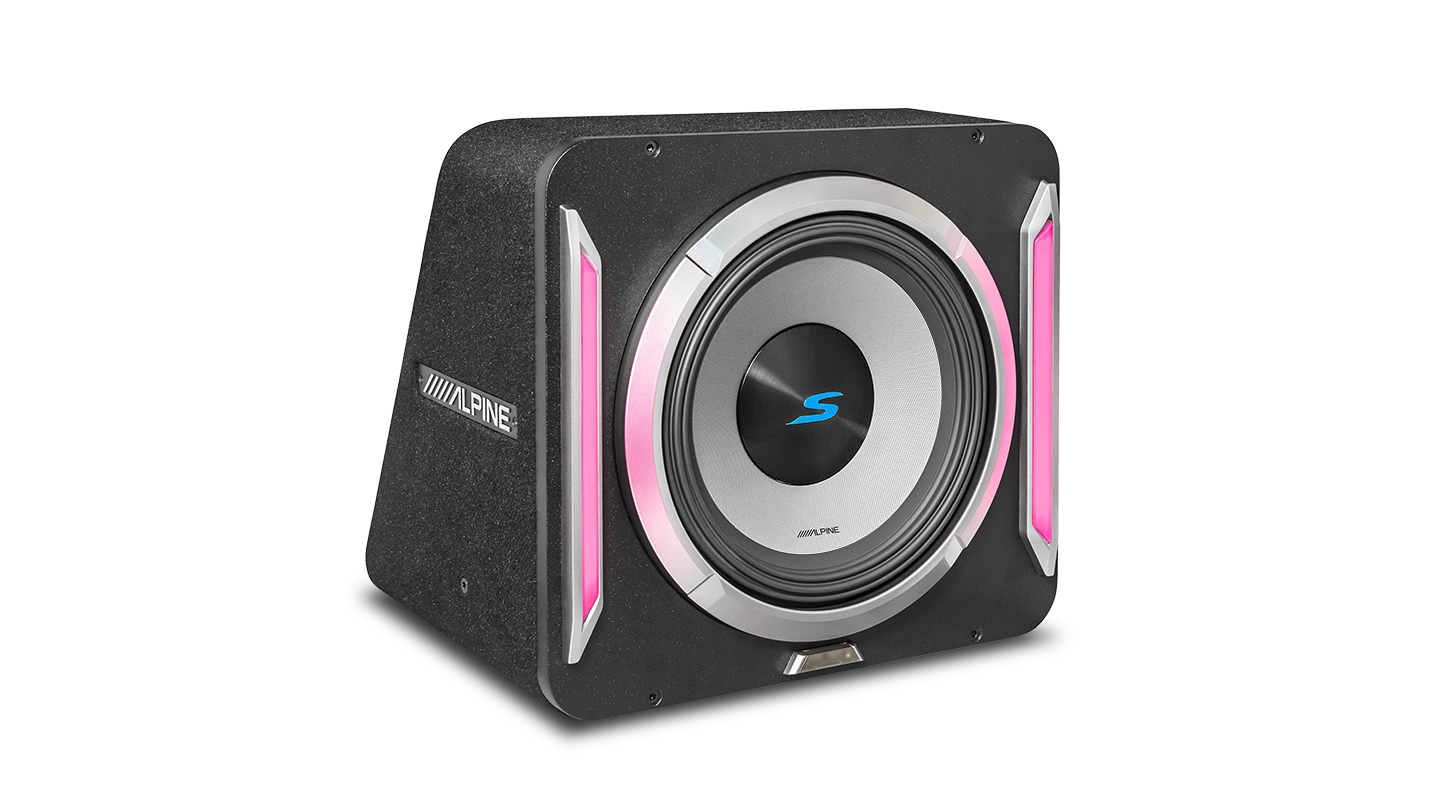

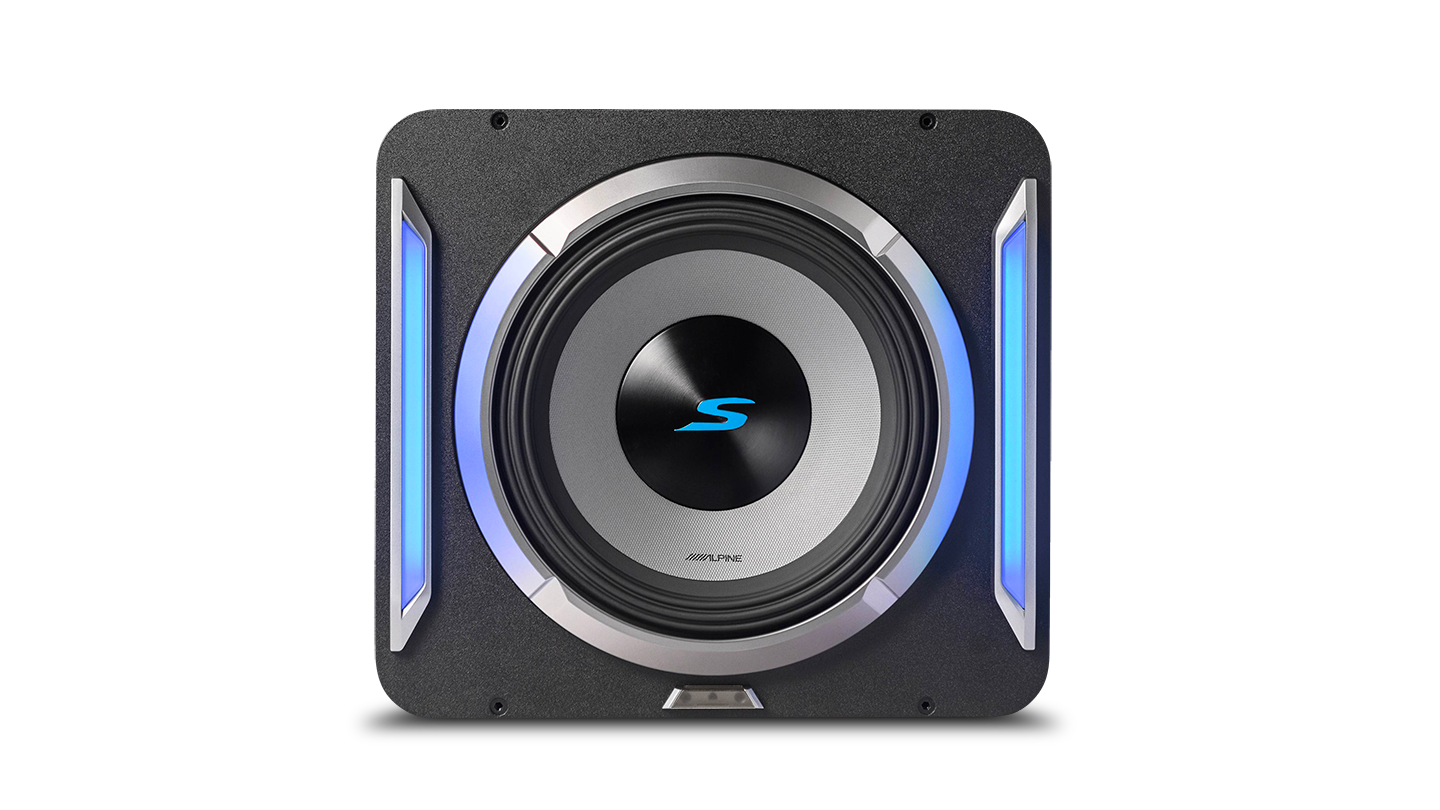

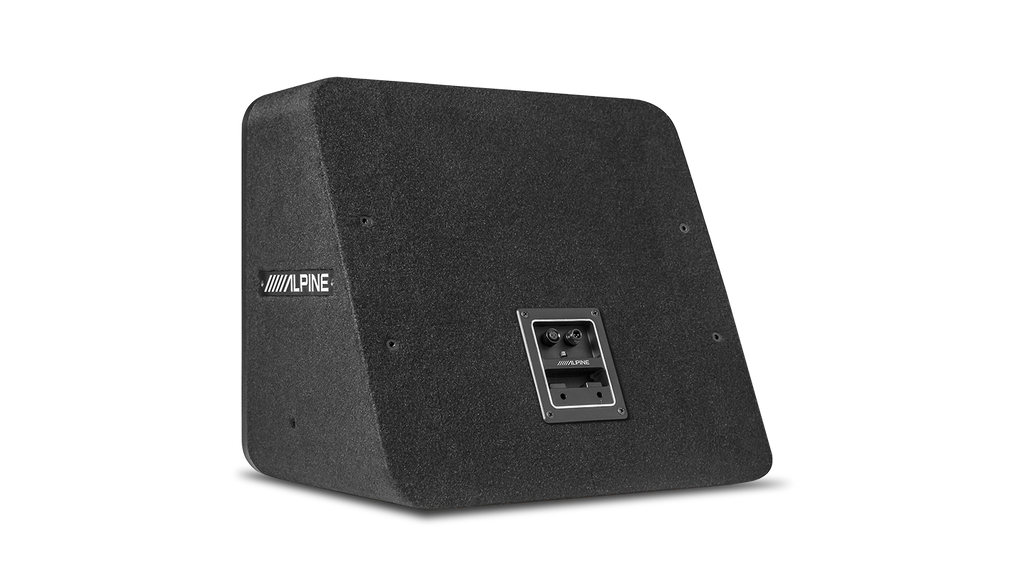

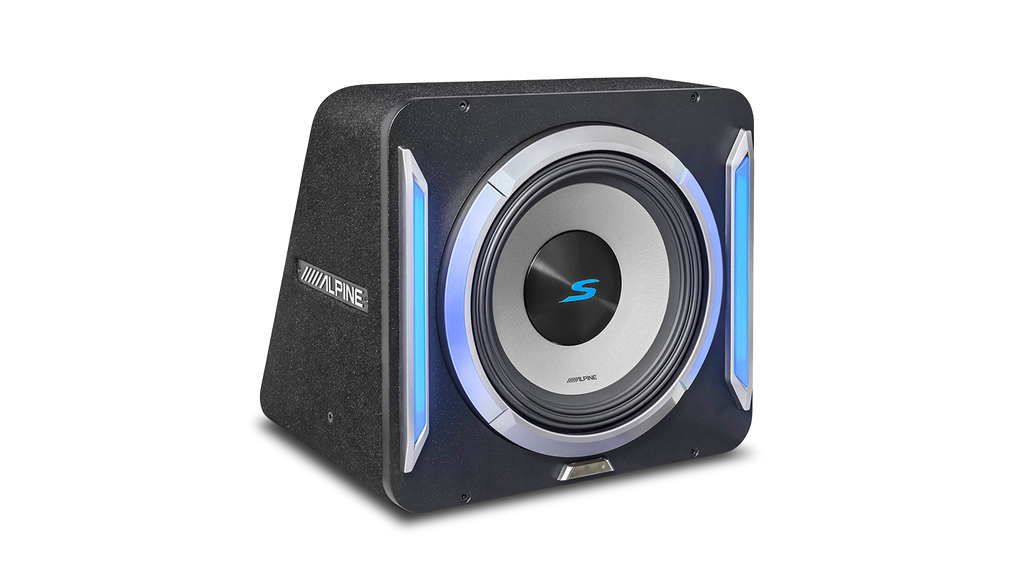

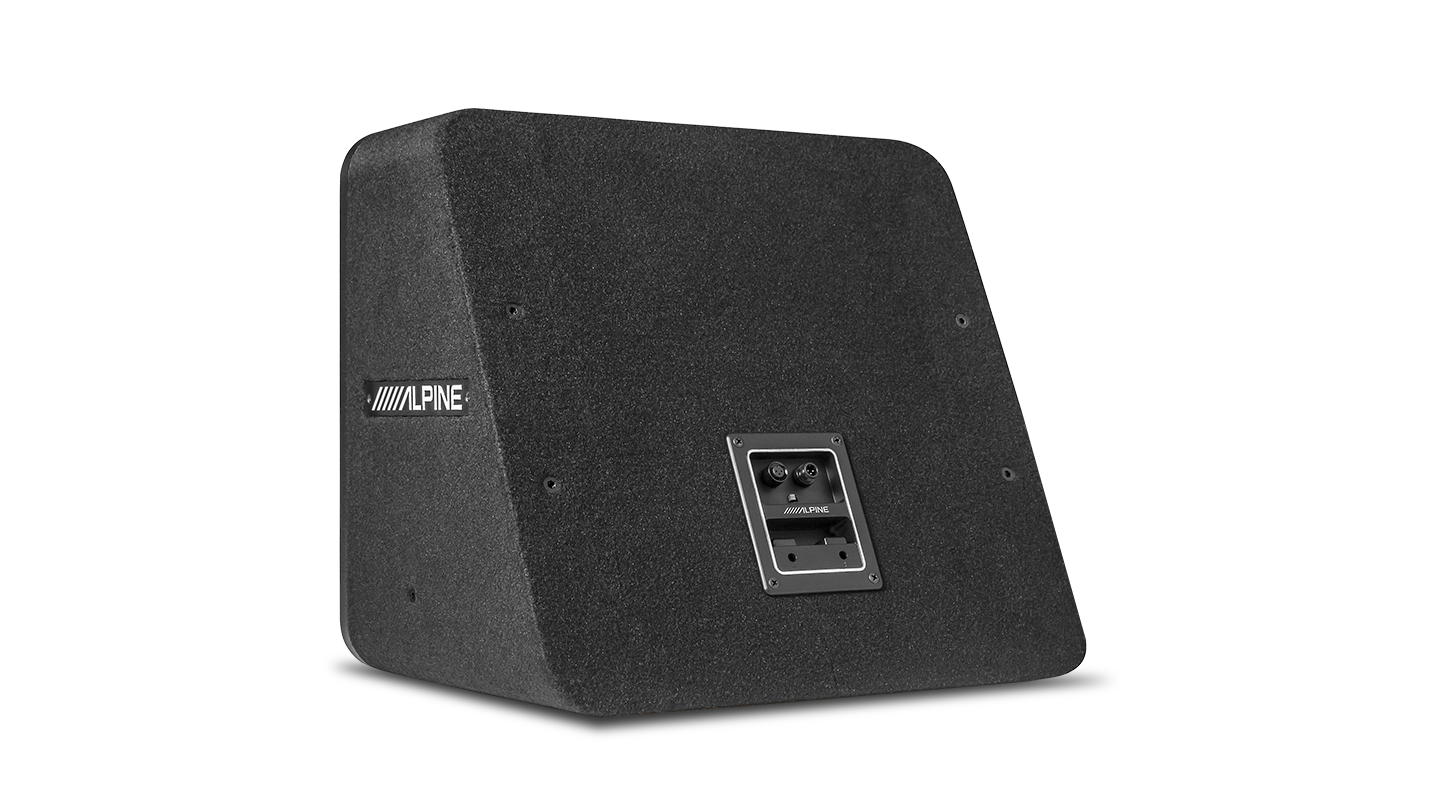

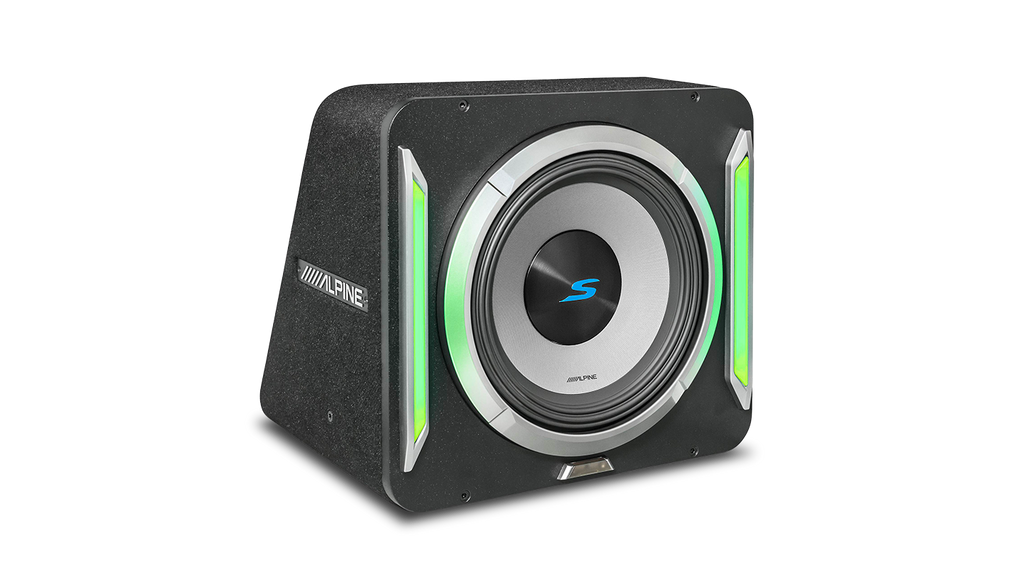

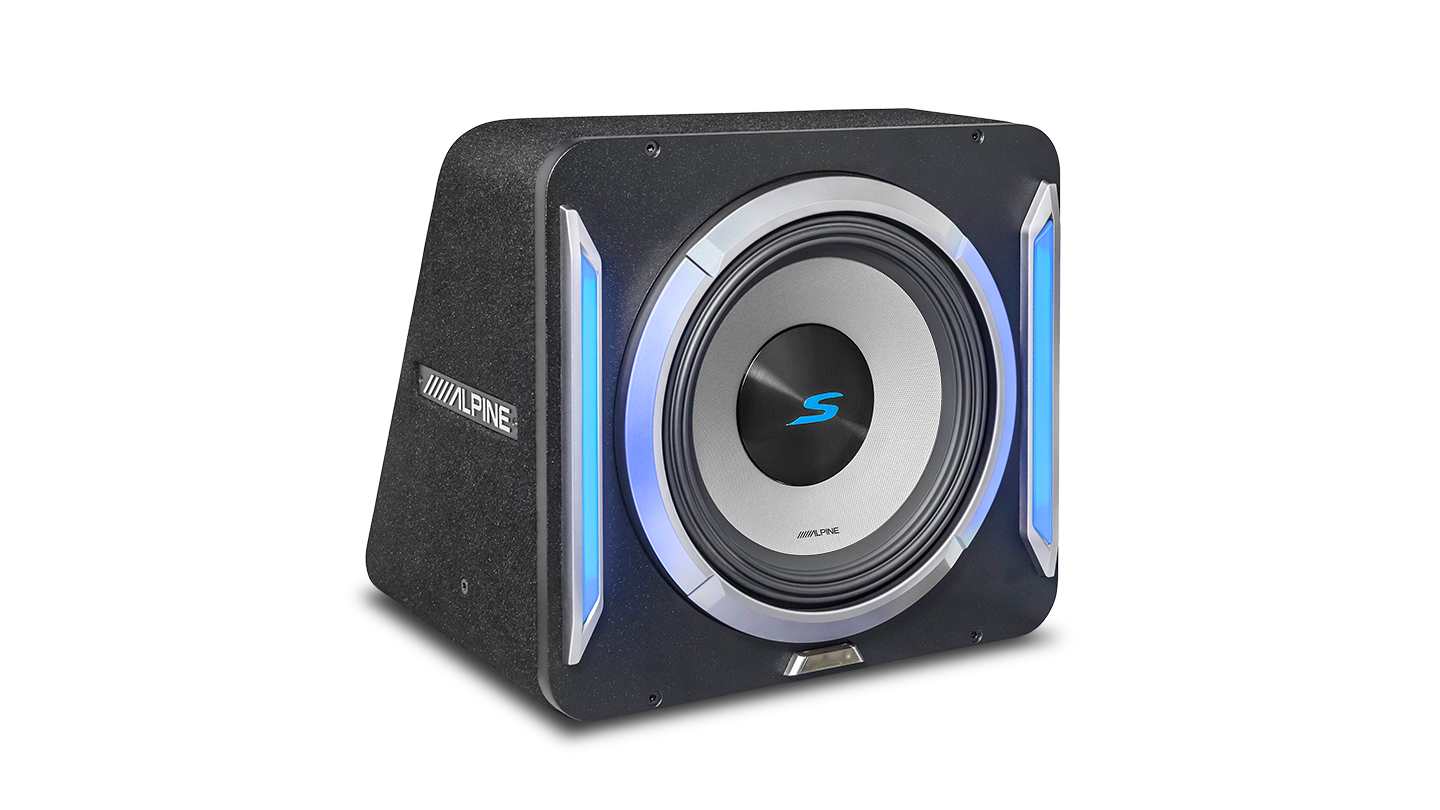

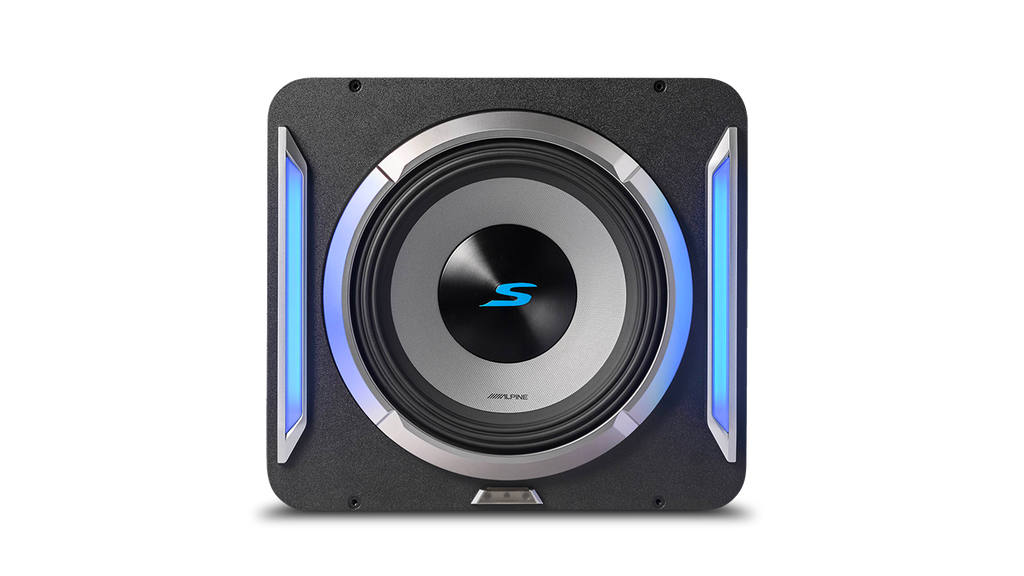

S2-SB12

 subwoofer enclosure that sounds as good as it looks. This 12-inch wedge style subwoofer enclosure seamlessly blends style, performance, and expandability, delivering powerful bass with a visual RGB lighting experience. S2-Series subwoofers are designed and engineered for extreme bass performance exceeding their nearest rivals at a modest price point. Furthermore, S2-Series PrismaLink™ Subwoofer enclosures can be perfectly matched with S2-Series amplifiers and S2-Series speakers for an overall cohesive system theme and optimised sound performance.

Illuminate Your Audio

Colour and sound collide to bring you a stunning 12-inch wedge style subwoofer enclosure, designed for optimal bass performance, vehicle fitment, and includes an integrated RGB lighting system that’s multi-link capable for single, dual, and even quad-enclosure installations.

Lighting Link Control with iLX-W670A

Manage the integrated RGBW trim bars effortlessly through the intuitive Lighting Link control screen on the iLX-W670A Receiver. With a simple touch, users can easily change the ambiance, adjust colors, and change modes on the PrismaLink™ enclosures. Whether it’s setting the perfect vibe for a late-night drive or enhancing the atmosphere of a weekend getaway, the intuitive interface empowers users to tailor their lighting experience with precision and ease.

Multi-Link Lighting

The PrismaLink™ Subwoofer Enclosures feature a pre-wired, RGB light integration in the enclosure trim bars that’s able to connect across the optional subwoofer linking brackets (KTX-LK12, sold separately) for a brilliant, uninterrupted display of colour that’s controlled by an included IR remote or the iLX-W670A Digital Multimedia Display with touchscreen Lighting Link control.

S-Series Performance

PrismaLink™ Enclosures come preloaded with Alpine’s next-generation S-Series Subwoofers, which feature a lightweight but rigid cone material and Alpine Proprietary High-Amplitude Multi-Roll (HAMR) surround to provide an enhanced “punch” and accurate bass performance.

Multi-Link Capability

Expand your bass output seamlessly by connecting multiple 12″ PrismaLink™ Subwoofer Enclosures together using these innovative linking brackets (KTX-LK12). Take it a step further by using multiple linking brackets to combine three, four, or more enclosures together. This unparalleled flexibility allows you to tailor your sound setup precisely to meet your bass needs.

Features

• Preloaded S2-W12D4 12” S-Series Subwoofer
• Sealed Wedge Style Enclosure Design
• RGBW Multi-colour Trim Bar Lighting with IR Remote included
• Lighting Modes: 12 Static Colours, 4-Dynamic Modes
• Multi-Link Capable (Link 2 or more enclosures together)
• Lighting Link Control via iLX-W670 Head Unit
• Carbon Fiber / Poly Propylene Subwoofer Cone
• Lightweight Construction, High Output, Low Distortion
• Enhanced “Punch” and Accurate Bass
• High-Amplitude Multi-Roll (HAMR) Surround for High Excursion
• Compatible with the KTX-LK12 12” Linking Bracket for Multi-Link Application

Specifications

• Enclosure Dimensions: 16.5” (W) x 15” (H) x 13.25” (D)
• Power Handling: 600W RMS / 1800W Peak
• Nominal Impedance: 2Ω
• Frequency Response: 23Hz – 215Hz
• Sensitivity: 86dB
• X-Max (1-Way): 15mm
• Voice Coil: 2.6”
• Magnet Weight: 64oz (1.81kg)
• Dual 4Ω + 4Ω voice coils wired in parallel for a 2Ω load
