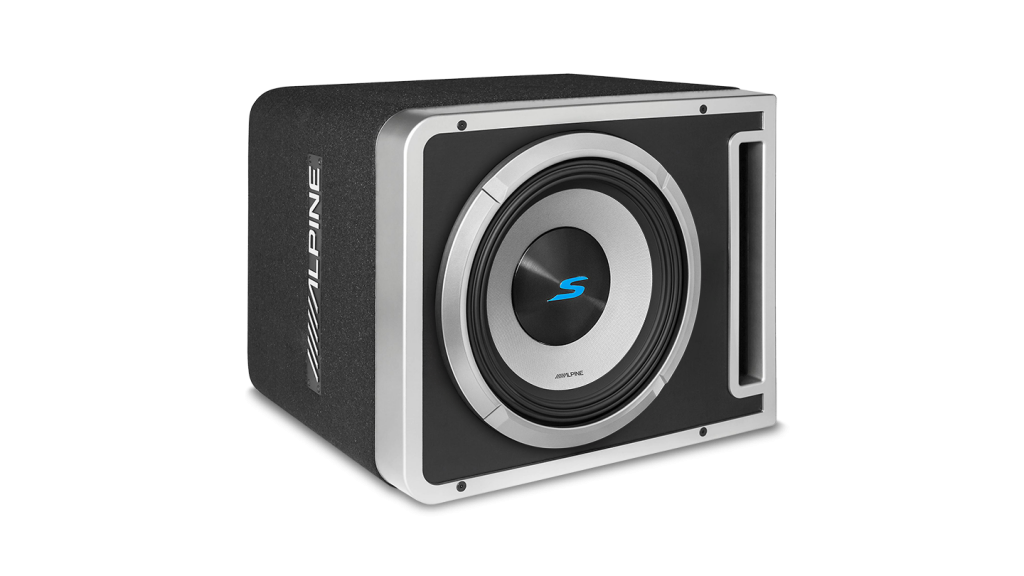

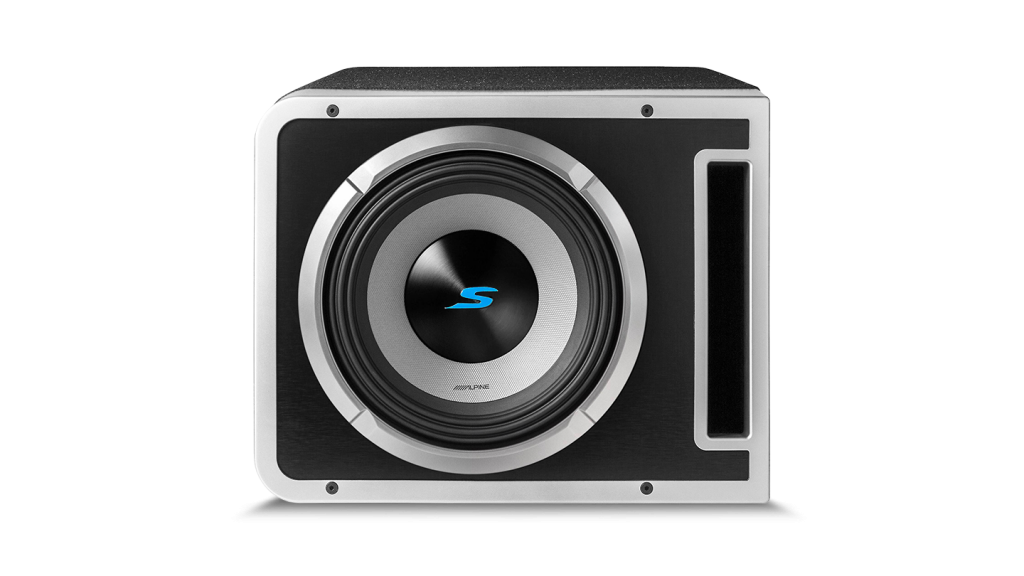

S2-Series 10″ Halo Subwoofer with ProLink™

| 10" | Halo Box | S2-Series |


A subwoofer enclosure that sounds as good as it looks. Alpine’s preloaded, linkable subwoofer enclosures give you powerful performance with the unique Alpine Halo design and ProLink. S-Series subwoofers are designed and engineered for extreme bass performance exceeding their nearest rivals and modest price point. Furthermore, S-Series Halo Subwoofer enclosures are perfectly matched to S-Series amplifiers and S-Series speakers for an overall cohesive system theme and optimised sound performance.

Optimal Sound Performance

The S2-SB10V delivers seriously powerful low-frequency bass and with their highly efficient design produces best-in-class bass output. The USA designed enclosure features an optimised vent and rounded internal port edges that maximises output performance of the subwoofer. The result is a higher total sound output for deep, powerful and accurate bass coupled with S-Series renowned reliability and endurance.

Built to Perform

Without compromise the S2-SB10V is built from high-quality construction materials to achieve a custom look, without the custom work. Made from 3/4-inch medium density fibreboard (MDF) with internal edge bracing, the S2-SB10V is sturdy and rugged, yet stylish with a premium black carpet covering and brushed aluminium finish on the metallic front baffle.

Tuned for S-Series

The S2-SB10V includes a preloaded S-Series S2-W10D2 10-inch subwoofer that’s tuned to 36Hz for optimised performance with Alpine S-Series sound system speakers and amplifiers. Dual 4Ω voice coils are wired in parallel for a 2Ω load that’s compatible with the S-Series S2-A60M Mono Power Amplifier. Gold-plated binding post terminals allow for speaker wire, ring terminal, or quick disconnect banana plug connections.

Stand Out From the Crowd

The Alpine Halo platform modernises the look and feel of any vehicle. Drawing inspiration from the sleek, tapered lines and silver accent of the Alpine Halo Display, the S2-SB10V shares the same design cues, with a curved silver trim and a metallic front baffle. The S2-SB10V offers not only premium sound performance, but also elevates the interior of the vehicle for a subwoofer you can be proud to show off.

KTX-H10 Linking Kit

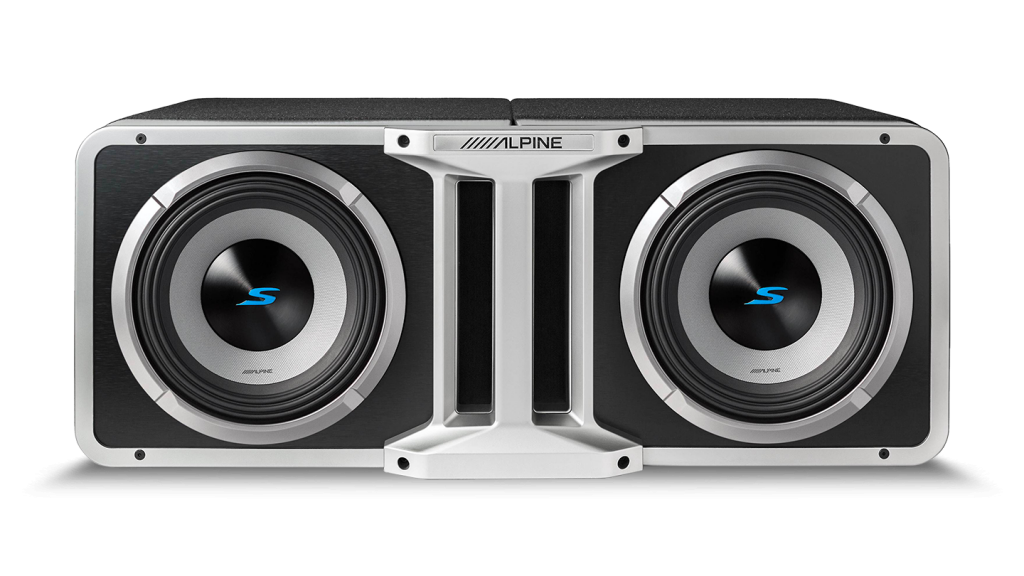

ProLink™ is unique to Alpine and allows you to link two S2-SB10V enclosures together using an optional KTX-H10 Linking Kit (sold separately) to create a dual subwoofer-enclosure. Now you have the flexibility in power and price to use a single subwoofer or add another subwoofer immediately if more bass is desired, or gives you the capability to upgrade your bass later-on.

Unique ProLink™ Design

When you’re looking to make a noticeable impact in your sound system, you add a subwoofer that will bring out the low-end bas of your music. But what if you already have a single subwoofer and still crave more bass? You could throw out your single enclosure and purchase a new dual enclosure or you can build your bass with Alpine’s new ProLink™ technology.


  • Includes Preloaded S2-W10D2 10” S-Series Subwoofer
  • Ground-breaking Alpine Halo Design
  • ProLink™ Ported Enclosure Design
  • USA Designed for Optimal Bass and Sound Quality Performance
  • CARB compliant 3/4-inch MDF construction
  • Premium Black Carpet
  • Silver Alpine Embossed Side Logo Badge
  • Brushed Aluminium Finished Metallic Front Baffle
  • KTX-H10 Linking Kit Ready
  • KTE-10G.2 Mesh Grille Ready


  • Peak Power Handling: 1800W
  • RMS Power Handling: 600W
  • High-Excursion Overhung Voice Coil Configuration
  • 65mm Voice Coil 5-Layer DVC Winding on Aluminium Former
  • Stacked High-Grade Strontium Ferrite Magnets
  • High-Strength Steel Frame
  • Progressive Spider with Reinforced Layer Tinsel Leads
  • Perimeter Venting with Airflow Management System
  • Optimised Dual Flare Pole Vent
  • Concealed Mount Gasket
  • Reinforced Parabolic Cone Structure (Pulp/Kevlar & PP/Mica/Talc Dust Cap)
  • High-Amplitude Multi-Roll (HAMR) Surround
  • Dimensions: 16” W x 12.6825” H x 14.5” D
  • Dual 4Ω Voice Coils Wired in Parallel for a 2Ω Load (Compatible with S2-A60M)
  • 12 Gauge OFC Speaker Box Wire

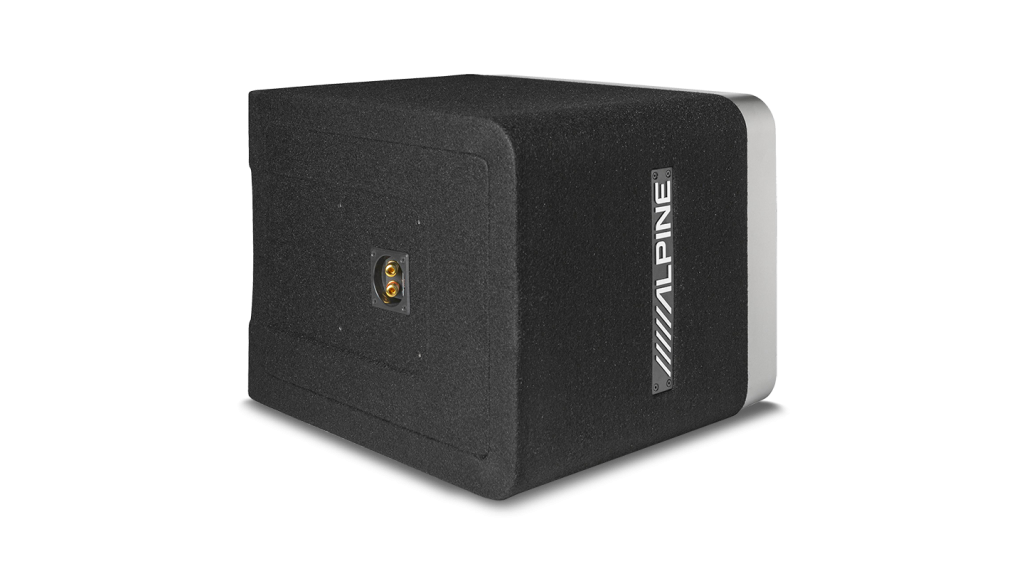

  • Binding Post Terminal Cup
  • Threaded Subwoofer Mounting Inserts (for reversible subwoofer orientation)
  • Nominal Impedance: 4Ω+4Ω Dual Voice Coil
  • 2Ω Impedance Loading: (4Ω+4Ω Parallel Circuit)
  • Frequency Response: 28Hz-200Hz
  • Vented Enclosure Tuning Frequency: 36Hz
  • Sensitivity 84dB
