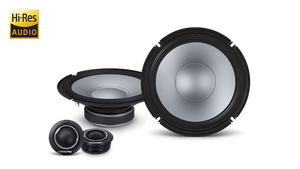

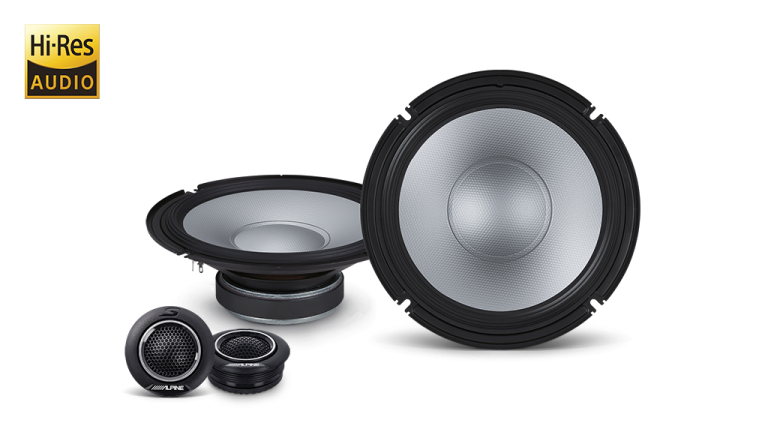

S2-S80C Alpine S2-Series 8 Inch 2-Way Hi-Res Audio Component Speaker System

  • Sale
  • Regular price $299.95
Tax included.

Experience the rich detail and sonic excellence of Alpine’s next-generation S-Series loudspeakers — now featuring Hi-Res Audio for the first time.

Alpine innovation continues with the adoption of all-new technology and engineering in the construction and materials used in the new S-Series.  The lightweight, composite glass fiber cone unites with Alpine’s patented HAMR surround technology to achieve increased control and excursion of the woofer diaphragm, resulting in pure, punchy sound and powerful bass at high SPL. In addition, the 1” soft dome tweeters come alive in the upper harmonics, delivering smooth high frequency response extended right up to 40kHz, so you can hear the nuances in your music.

With an extensive range of component and coaxial speakers, the new S-Series is most impressive and versatile speaker line-up ever, providing greatly expanded, providing flexibility and installation compatibility into virtually any vehicle.

S-Series continues to establish the benchmark for feature-rich, impressively detailed loudspeakers that accurately represent true studio-level Hi-Resolution audio faithful across the entire frequency bandwidth.

Take your in-car sound to the next-level with new S-Series loudspeakers rivalling sound quality and performance far beyond their modest price-point.



  • 8″ (200mm) Lightweight Glass Fiber Composite Component Speaker
  • HAMR (High Amplitude Multi-Roll) Surround
  • Large Voice Coil
  • Magnet Material: Strontium Ferrite


  • 1″ Extended-Range Soft Dome
  • Magnet Material: Ferrite
  • Application Type: External/Swivel Tweeter Mounting Kit
  • Flush mount and Collapsable for OEM fit.
  • Grill: Perforated Net

Crossover Network

  • Woofer: Copper Air-Coiled Wound Inductor
  • Tweeter: High Grade Audio Poly-Capacitor


Power Handling

  • Peak Power: 260 Watts
  • RMS Power: 85 Watts (CTA-2031 Compliant)

Dimensions Woofer

  • Frame 210 mm
  • Cutout Diameter: 179mm
  • Mounting Depth: 66.5 mm
  • Mounting Height: 7.4 mm
  • Magnet: 100.0 mm

Dimensions Tweeter

  • Frame: 58mm
  • Mounting Diameter: 51mm
  • Mounting Depth: 17.6mm
  • Height: 25.6 mm


  • Frequency Range: 55 Hz – 40 kHz
  • Impedance: 4 Ohms (DCR 3.7 ohms)
  • Sensitivity: 89 dB/W (1W @ 1m)
  • Recommended Amplification: up to 85W RMS per channel
