Alpine

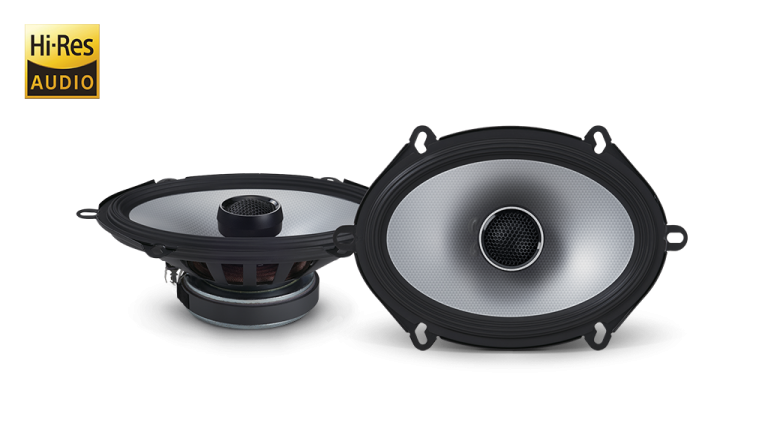

S2-S68 Alpine S2-Series 6×8 Inch Coaxial Hi-Res Audio Component Speaker System

  • Sale
  • Regular price $199.95
Tax included.


Experience the rich detail and sonic excellence of Alpine’s next-generation S-Series loudspeakers — now featuring Hi-Res Audio for the first time.

The S-Series continues to establish the benchmark in sound quality and value by producing impressively detailed loudspeakers that accurately represent true studio-level Hi-Resolution audio faithful across the entire frequency bandwidth.

Alpine innovation continues with all-new technology and engineering in the construction and materials adopted in the new S-Series.  The exclusive design composite glass fiber hybrid cone is extremely rigid and lightweight, which further unites with Alpine’s patented HAMR surround to achieve increased control and excursion of the woofer diaphragm, resulting in pure, punchy sound and powerful bass at high SPL.

In addition, the 1” soft dome tweeters come alive in the upper harmonics, delivering an incredibly smooth and detailed high frequency response that’s extended right up to 40kHz — so you can hear the finest nuances in your music.

With an extensive range of component and coaxial speakers, the new S-Series is the most impressive and versatile speaker line-up ever, providing system configuration flexibility and installation compatibility into virtually any vehicle type.

Take your in-car sound to the next-level with the new S-Series loudspeakers rivalling performance far beyond their modest price-point.

Features

Woofer

  • 6×8″ (150cm x 200cm) Lightweight Glass Fiber Coaxial Speaker
  • HAMR (High Amplitude Multi-Roll) Surround
  • Large Voice Coil
  • Magnet Material: Strontium Ferrite

Tweeter

  • 1″  Extended-Range Soft Dome Tweeter
  • Magnet Material: Ferrite
  • Tweeter Grill: Punched net

Crossover Network

  • Tweeter: High Grade Audio Poly Capacitor

Specifications

Power Handling

  • Peak Power: 230 Watts
  • RMS Power: 75 Watts (CTA-2031 Compliant)

Dimensions

  • Frame 220 mm x 140mm
  • Cutout Diameter: 183mm x 126mm
  • Mounting Depth: 60.5 mm
  • Mounting Height: 10.2 mm
  • Magnet: 90.0 mm

General

  • Frequency Range: 75 Hz – 40 kHz
  • Impedance: 4 Ohms (DCR 3.1 ohms)
  • Sensitivity: 88 dB SPL (1W @1m)
  • Recommended Amplification: up to 75W RMS per channel

For any product updates and specs, visit S2-S68 | Alpine Electronics of Australia
