(( FLAX EVO ))
Treat yourself to new sensation and unprecedented sound dynamics which will send shivers down your spine. The live sound of the Flax Evo line is revealed with power and high performance.

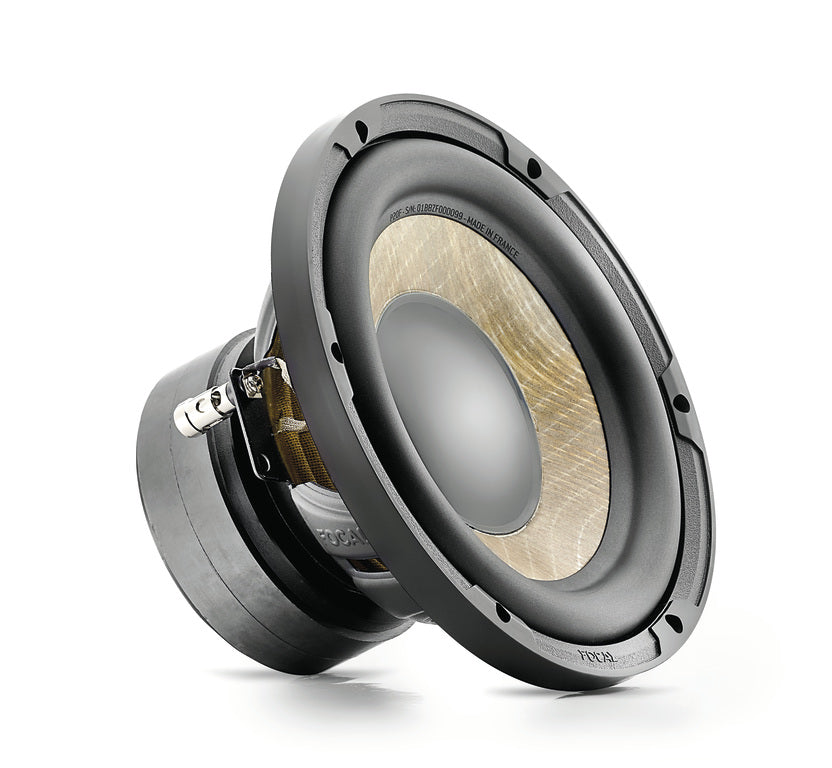

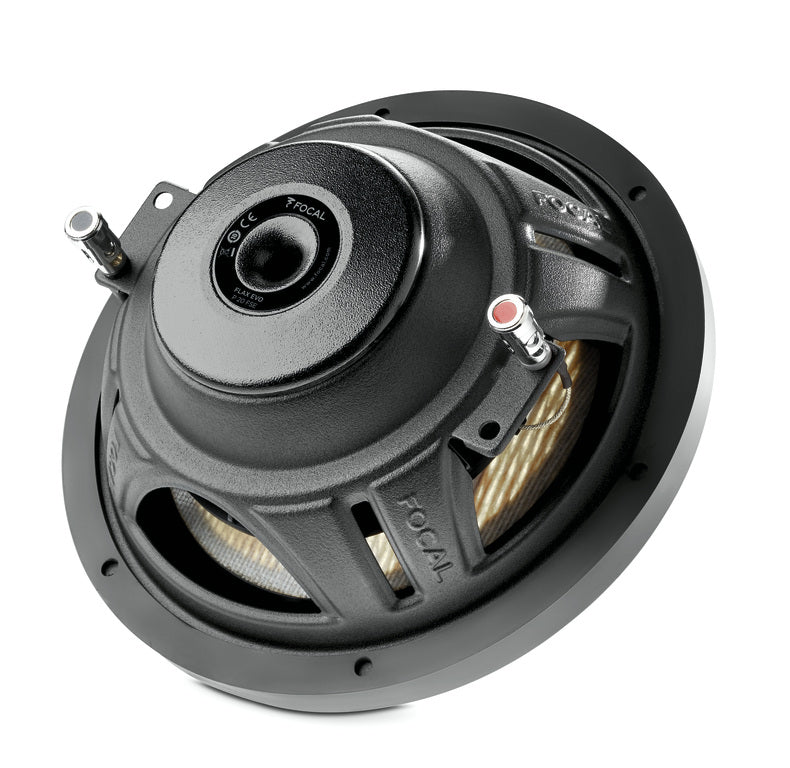

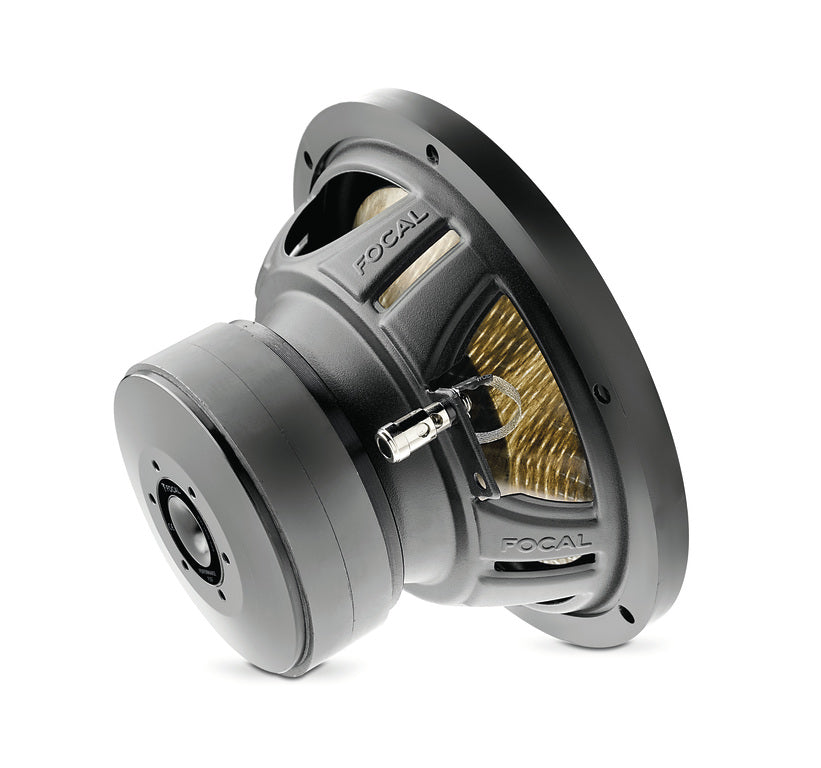

P 20 FE
Spec Sheet | Tech Sheet | Manual
The P 20 FE subwoofer is equipped with Focal’s exclusive Flax cone which guarantees high rigidity and therefore bass reproduction with impact.
Robust and reliable, its shaped rubber surround allows impressive articulation, synonymous with dense and deep low frequencies. The coil on glass fibre stand, meanwhile, reduces overheating to guarantee perfectly adapted ventilation. Finally, the 120mm “Dual Magnet” motor offers even more power (500 watts/250 watts RMS).
P 20 FE is the ideal compromise for sealed-box (10 to 15L) or bass-reflex use (10 to 20L).
KEY POINTS
- Unique, patented Flax cone
- “Dual Magnet” motor
- Made in France in the Focal workshops
- Power and precision
THE FLAX CONE, EXPRESSIVE AND NATURAL
This flax cone has been exclusively made in France by Focal since 2013. With its original design, it is 100% geared towards acoustic performance. This sandwich cone is formed of a flax fibre core placed between two thin sheets of glass fibre. Flax is a fibre with the unique ability to reproduce a very natural sound without colouration, with a rich reproduction in the midrange and clear bass strokes. Its lightness offers great dynamics, while its rigidity sustains the bass and provides good damping to deliver a faithful listening experience. Flax fibre is twice as light as glass fibre as it is hollow. Its very low elasticity makes it ideal for increasing the flexural rigidity module of a sandwich structure.
Sound Acoustics
- Product type : Subwoofer
- Loudspeakers : Subwoofer: 7.9″
- Membrane : Flax
- Frequency response (+/- 3dB) : 39 Hz – 500 Hz
- Maximum power : 500 watts
- Maximum SPL (peak@1m) : 82.5 DECIBEL
- Motor : Dual Magnet
- Nominal Impedance : 4 Ω
- Nominal power : 250 W RMS
- Sensivity : 82.5 dB
- Suspension material : Rubber
Sound Electronics
- RMS power : 250 W RMS
Design
- Product Depth: 117 mm
- Cut-Out diameter : 214 mm
- Weight : 3500 g
Grilles
Technologies
FLAX MEMBRANE
Purity and precision of sound
As the key component of a loudspeaker, the membrane is at the heart of our acoustic engineers’ research. After more than five years of research and development, in 2013 Focal unveiled an exclusive membrane made from flax. Patented, this Flax cone is a sandwich made of very high quality French flax fibre placed between two thin sheets of glass fibre. It satisfies all the criteria of a high-fidelity membrane: lightness to offer good dynamics, rigidity to hold the bass and damping to deliver a neutral, natural, uncolored sound. It is an emblematic Focal innovation in many hi-fi products.
