Helix M Series Monoblock Amplifier

Name: M ONE
Brand: Helix
SKU: M ONE
Price: 695.00 AUD
Availability: OutOfStock

Special Order | Owner's Manual

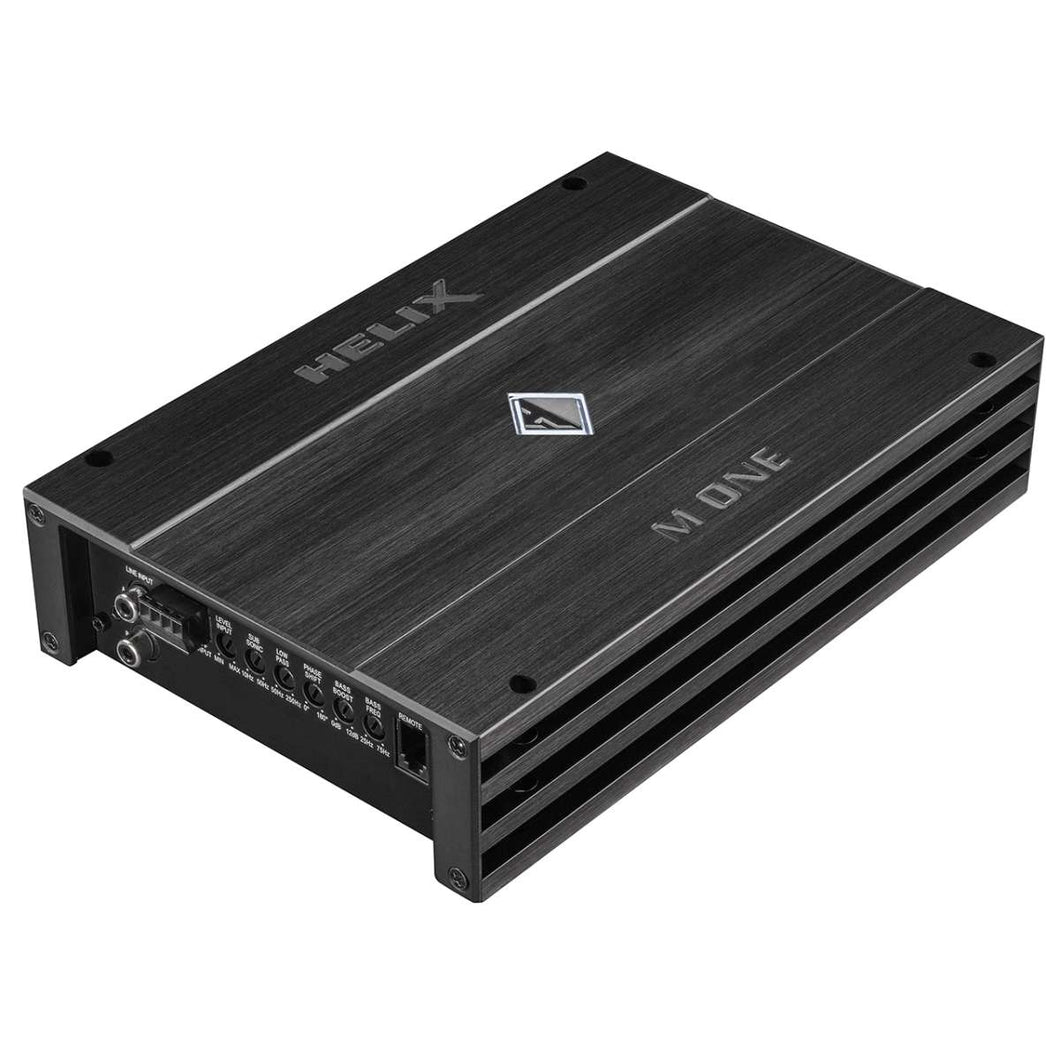

HELIX M ONE - 1 Channel Digital Amplifier | 1Ω Stable

HELIX M ONE

Product parameters

Channels: 1 Channel | Mono
Built-in DSP: No
RCA Input: 2x RCA
High-Level Input: 2x High level
Power W RMS/ch | 4Ω: 240
Power W RMS/ch | 2Ω: 410
Power W RMS/ch | 1Ω: 600
Class: D
Max Input Sensitivity (V): 13
Operational Voltage:
RCA Out: 0x | No Pre-out
Product Depth | mm: 154
Product Width | mm: 230
Product Height | mm: 50

Small, efficient and uncompromisingly stable – the M ONE is a highly compact monoblock for subwoofer applications. Designed from latest Class D technology this tiny amp can easily control speakers with 1 Ohm impedance. Its current capability makes the M ONE a perfect partner for 2 x 2 Ohms subwoofers, where both voice coils are connected in parallel.

In addition a comprehensive and stunningly practical feature set leaves nothing to be desired. Last but not least installation will be a no-brainer due to the minimal dimensions.

Features

Small footprint Class D amplifier with high output power of 600 Watts RMS @ 1 Ohm for easiest combination with all 2 x 2 Ohms subwoofers connected in parallel
Start-Stop capability down to 6V supply voltage
Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
Integrated, active crossover with lowpass, bass boost, subsonic and phase control
Extremely stable output stage with high-current power transistors and 1 Ohm stability
Bass remote control for volume adjustment
SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability
Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency

Special features:

Smart highlevel input

The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear - but not with the M ONE.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.

Start-Stop capability

The switched power supply of the HELIX M ONE assures operation even if the battery’s voltage drops down to 6 Volts during engine crank.

Technical data

Output power RMS ≤ 1% THD+N
- @ 4 Ohms	1 x 240 Watts
- @ 2 Ohms	1 x 410 Watts
- @ 1 Ohm	1 x 600 Watts
- bridged @ 4 Ohms	-
- bridged @ 2 Ohms	-
Max. output power per channel*	Up to 720 Watts RMS @ 1 Ohm
Amplifier technology	Class D
Inputs	2 x RCA / Cinch 2 x Highlevel speaker input 1 x Remote In 1 x Remote control input
Input sensitivity	RCA / Cinch 0.5 - 6 Volts Highlevel 1.1 - 13 Volts
Input impedance RCA / Cinch	20 kOhms
Input impedance highlevel	13 Ohms
Outputs	1 x Speaker output
Output voltage RCA / Cinch	-
Signal converter for digital input	-
Frequency response	10 Hz - 250 Hz
Bass boost	0 - 12 dB / 25 - 75 Hz
Highpass	-
Lowpass	50 Hz - 250 Hz adjustable
Bandpass	10 Hz - 250 Hz adjustable
Subsonic	10 Hz - 50 Hz adjustable
Phase	0 - 180° adjustable
Slope high- / lowpass	-
Slope subsonic / lowpass	12 / 24 dB/Oct.
Signal-to-noise ratio digital input	-
Signal-to-noise ratio analog input	95 dB (A-weighted)
Distortion (THD)	0.20 %
Damping factor	100
Operating voltage	10.5 - 16 Volts (max. 5 sec. down to 6 Volts)
Idle current	650 mA
Operating temperature range	-40° C to +70° C
Fuse	2 x 35 A Maxi-fuse (APX)
Additional features	Active, adjustable crossover, bass boost, phase shift, Start-Stop capability, highlevel input with automatic turn on function and Advanced Diagnostics Error Protection (ADEP), bass volume cable remote control
Dimensions (H x W x D)	50 x 230 x 154 mm / 2.00 x 9.06 x 6.06”
