Alpine Status
6-1/2" 3-Way Alpine Status Hi-Res Audio Certified Audiophile Slim-Fit Component Speaker Set


Special Order | Owners Manual

Alpine Introduces the all-new Alpine Status sound system: using the same engineering and design concepts drawn from the third generation, Ultra High-Resolution AlpineF#1Status system, Alpine created “Alpine Status” to achieve High-Resolution Sound at a more approachable and accessible price point. The Alpine Status system is also extremely flexible: all components can be purchased and used in “stand-alone” configuration.

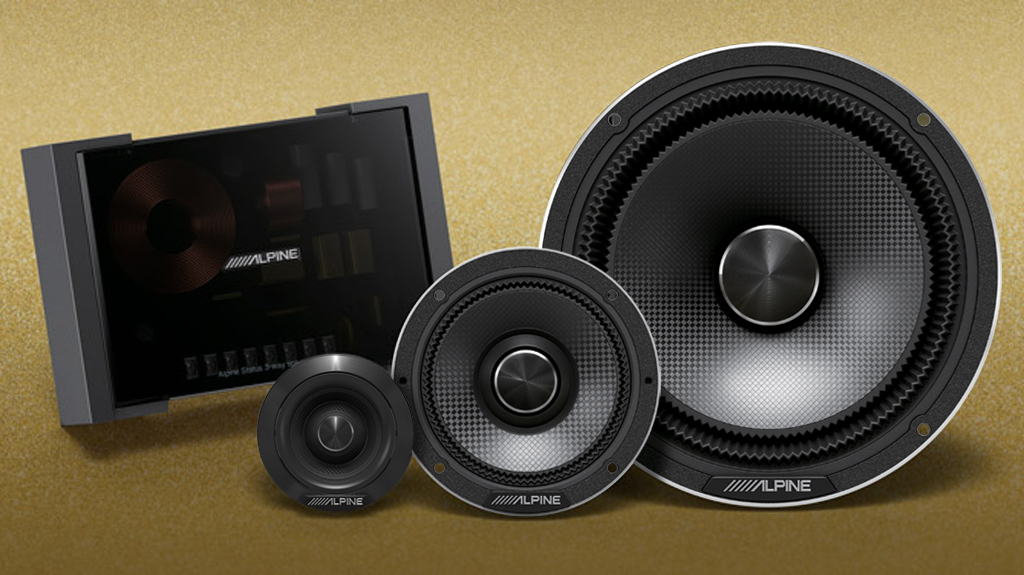

For the audiophile that’s looking to build an ideal sound system, Alpine Status offers a wide range of Hi-Res Audio enabled speakers. The HDZ-653S Slim-Fit 3-Way speaker set with a high-resolution bandwidth of 55Hz – 40kHz includes a 170mm door woofer, 96mm mid-range, and 40mm Slim-Fit tweeter that is easy to install in original tweeter locations of your car. They also include high-end speaker X-overs.

All speaker cones are made from the same Carbon Composite material to create a unified timbre identity during playback. They get very close to the AlpineF#1Status speakers look and feel, using a very similar constructing and motor assembly, as well as the identical build-materials for highest sound quality.

Hi-Res Audio Made Accessible

The Alpine Status system features many technologies, components and materials of the AlpineF#1Status system to achieve ultra high-precision music reproduction – at an affordable price tag. It is designed to play music tracks at 192kHz / 24bit format, which are widely accessible in many online stores and streaming platforms. High-Res Audio playback of 192kHz / 24bit allows Alpine Status to create a heightened listening experience in the vehicle that emulates the feeling of an intimate recording studio session.

Audiophile 3-Way Speaker System

Drawing from AlpineF#1Status trickle-down technology and materials, these Hi-Res Audio certified speakers deliver highest audiophile sound quality up to 40kHz in your vehicle. The 3-way system consists of 170mm door woofers, 96mm mid-range speakers and 70mm ring-radiator tweeters with 25mm voice coil. They also include high-end X-over networks in the set.

Carbon Fiber Cones

All speakers in this set (as well as the HDZ-110 Alpine Status subwoofer) use backed carbon composite cones to achieve a fully unified timbre identity – resulting in excellent harmonics. Carbon is very lightweight and stiff, resulting in high dynamics and low distortion. Backed carbon composite technology is also used in race-car monocoques for its light weight and high crash resistance.

Double-Gathered Edge

Yet another trickle-down technology from the AlpineF#1Status speakers: the double-gathered edge allows maximum cone excursion with excellent cone control and stability. This reduces sound distortion caused by cone wobble at higher volume levels.

High-End Ring-Radiator Tweeter

The included 70mm Hi-res Audio ring-radiator tweeters sound simply amazing and play up to 40kHz. They feature a 25mm carbon fiber diaphragm that is tuned to perfectly harmonise with the mid-range speaker and woofer to achieve a fully unified timbre identity. They also include an integrated wave-guide, tuned-back chamber and a powerful neodymium magnet.

Alpine Status Full System

Alpine Status features many components that are optimised in both power and performance as a complete system to play at their intended high-resolution spec for excellent, audiophile sound quality. However, each component can be purchased independently for custom system building.

Audiophile Speaker X-Overs

The included 3-way x-over networks feature hand-selected, high-end components and offer many adjustment possibilities: you can adjust the mid-range level from 0dB to -3dB, the tweeter level from +3dB, 0dB or -3dB and you can set the woofer X-Over to either 12dB/oct or 6dB/oct. The smoked acrylic cover bearing the Alpine logo can be slid-out to the front to gain access to the screw-terminals and jumpers.

Slim-Fit Tweeter Version

If you are planning a stealthy speaker installation or simply have no space for a 7cm tweeter, there is also a Slim-Fit version of this 3-way system. It is called HDZ-653S and includes the same woofers, mid-range and network, however the included tweeter is 44mm in diameter and has a much more shallow installation depth. This makes it very easy to be installed in original tweeter locations.

Studio Recording Spec

Alpine Status achieves 192kHz/24Bit playback, which is 6.5 times the amount of digital audio data in a standard CD or digital streaming service and exceeds the standard High-Resolution spec of 96kHz/24Bit found in most aftermarket sound solutions. This allows Alpine Status to capture and accurately reproduce details like the breath of the artist or a musician’s subtle interaction with an instrument. This capability not only reproduces music to the artist’s original intention, but emulates the experience of a studio recording in the vehicle.



  • Hi-Res Audio certified 3-Way speaker system
  • AlpineF#1Status speaker trickle-down technology
  • Maximum Peak Power: 300 Watts
  • Maximum RMS Power: 100 Watts
  • Woofer diameter: 170mm (177mm with attached grill)
  • Mid-range diameter: 96mm
  • Tweeter diameter (slim-fit): 40mm (58mm with housing)
  • Aluminum die-cast baskets
  • Backed carbon fiber cones
  • Double-gathered edge
  • High-end X-Over networks
  • Included speaker grills
  • Integrated Wave Guide on all speakers


  • Impedance 4Ω
  • Sensitivity 88dB SPL (2.83 V @ 1 m)
  • Frequency Response: 55Hz – 40kHz
  • Mounting depth: woofer 67mm / mid-range 39mm
  • Cutout diameter: woofer 142mm / mid-range 79mm
  • Recommended amplification: up to 100W RMS per channel
  • Ferrite magnet (woofer)
  • Neodymium magnet (mid-range speaker and tweeter)
