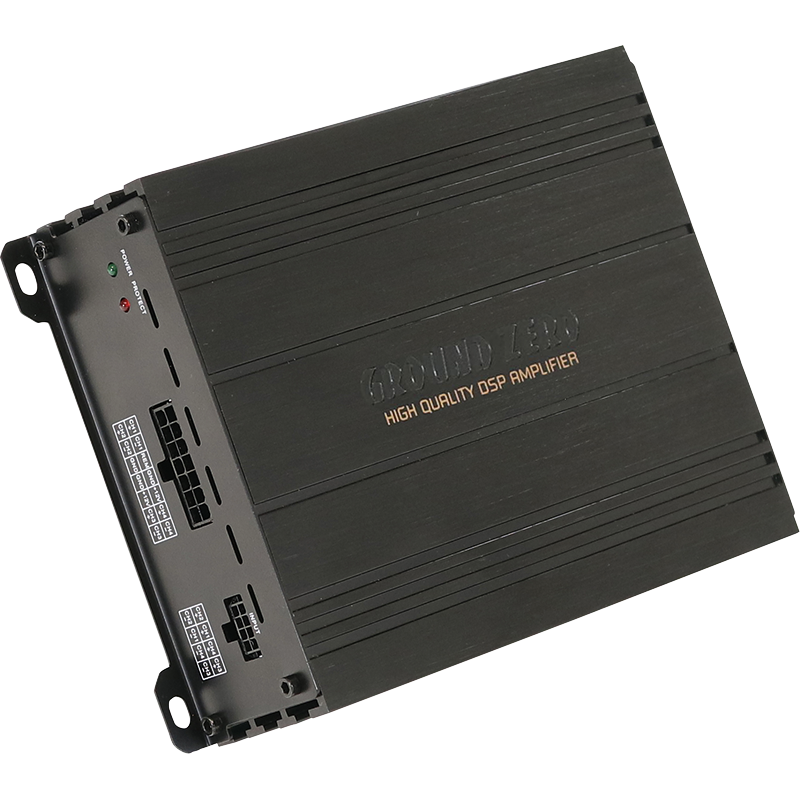

Ground Zero 4-channel amplifier with 8-channel DSP and ISO harness
8-channel DSP | Specification
4-channel amplifier with 8-channel DSP and ISO harness

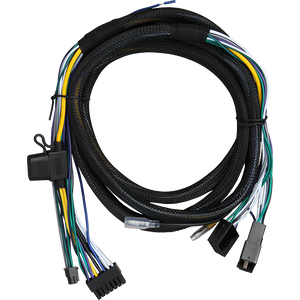

- ISO harness for simple installation
- Integrated 8-channel DSP
- Realtime DSP setting
- 2x 28 bit Analog Devices Prozessor
- Windows GUI software
- Separate 10 band equalizer for each channel
- Time delay
- Variable crossover
- Phase correction
- Automatic turn-on function
| Model | 4-channel amplifier with digital signal processor and ISO harness |
|---|---|
| High Resolution Compatible | no |
| TOSLINK Input | no |
| AUX Connector | no |
| High-Level Audio Mix | up to 4 channels |
| Frequency Response | 20 Hz – 20 kHz (-3 dB) |
| Input Sensitivity | 2 – 15 V (high-level/ISO) |
| max. Output Power (CEA-2006A / 10%THD+N) | 4x 70 Watts max @ 2 Ohms |
| Output Power | 4x 45 Watt RMS @ 4 Ohm |
| Remote | optional |
| Preset Memory | 6 |
| Dimensions (W x L x H) | 182 x 136 x 52 mm / 7.17″ x 5.35″ x 2.05″ |
