DIGITAL PRECISION SERIES
Digital Precision DP-Series 6.5″ Component 2-Way Speaker System
| Owners Manual | Digital Precision | 2-Way |
Product Description
Now featuring Hi-Res Audio specifications, Alpine’s second generation Digital Precision (DP) Series are state-of-art loudspeakers, delivering an acoustic performance to match their stunning high-performance inspired aesthetic design.
Re-engineered with a new motor structure, DP2-Series is taking sound quality performance to the next level. These speakers are composed with a bespoke design machine finished aluminium cast frame complimented by an elegant backplate housing and an industry first blue accented woven carbon fibre hybrid woofer diaphragm. The tweeter utilises a new Tetoron soft dome for a smoother and highly detailed top-end frequency response extending beyond 40kHz.
Engineered to reproduce the dynamics of digital sound sources and recordings, the DP2-Series have an extraordinary detailed high and mid-range response coupled with truely powerful and controlled bass to express every nuance and sound richness—ensuring your music can be enjoyed to the fullest.
The DP2-Series is the encapsulation of precision design and atmospheric sound performance.
Woven Carbon Fibre Diaphragm
The woven carbon fibre hybrid woofer diaphragm provides bullet-proof rigidity and is lightweight, this ensures accurate cone velocity and limits distortion to achieve a natural and highly revealing mid-range response, as well as powerful bass extension. The appearance of this loudspeaker is incredible with performance to match.
Aluminium Frame and Gold Plated Terminals
Manufactured with precision, the aluminium frame is rigid for low resonance with 6 mounting points for optimised bass coupling and mid-range response. The machine turned front and stunning backplate cover provides a high-class finish and the gold-plated terminals prevents connection degradation.
Tetoron Soft Dome Tweeter
Our Tetoron soft dome tweeter guarantees exceptional performance. It’s lightweight, durable, and boasts a wide frequency response to capture every detail of the audio spectrum, from the subtlest whispers to the most powerful crescendos. Whether you’re listening to classical symphonies, rock anthems, or the latest pop hits, our Tetoron soft dome tweeter delivers a listening experience that is nothing short of extraordinary.
High-Quality Crossover
The DP Series crossover network is equipped with high-quality parts including air-core inductors and Alpine specification poly-capacitors for minimum electrical tolerances. This ensures a clean signal path with seamless transition of high to low frequencies for high-end audio performance.
Features

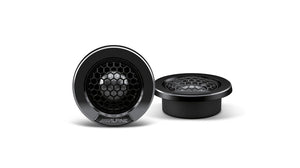

Tweeter
- Tweeter Type: 1″ Magnesium Alloy Dome Tweeter
- Magnet Material: Neodymium Magnet
- Application Type: Surface Mount

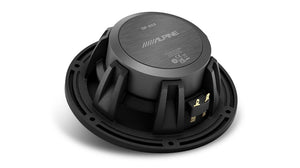

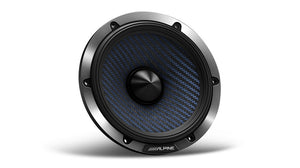

Woofer
- Cone Material: Woven Carbon Fibre Hybrid
- Magnet: Ultra High Density Radial Ring Magnet
- Frame: Cast Aluminium
- Surround: HAMR Multi-Roll
- Mounting: 6 Point
- Terminals: Gold Plated

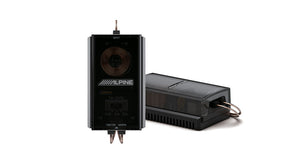

Passive Crossover Network
- Compact Design for Easy Installation
- Design: In-line 2 Way Network Design
- Tweeter Attenuation: 0dB, -3dB, -6dB
- High Grade Network Components
- Alpine Custom Specification Poly-Capacitors
- Air-Core Inductors
Specifications
General
- Peak Power Handling: 240W
- RMS Power Handling: 50W
- Nominal Impedance: 4ohms
- Frequency Response: 65Hz – 24KHz
- In-Line 2-Way High Quality Crossover
- 1″ Magnesium Alloy Dome Tweeter
- Woven Carbon Fibre Hybrid Woofer Diaphragm
- Woofer Cast Aluminium Frame

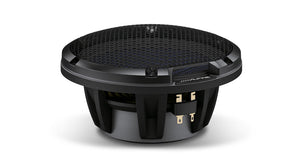

- Woofer Grille Optional (Pair): DP-65G
Dimensions
- Woofer Diameter : 165 mm
- Woofer Mounting Depth : 59 mm
- Woofer Cut-Out: 130.2mm
- Network Width : 51.9mm
- Network Height : 30.9mm
- Tweeter Diameter (Without Frame): 39mm
- Tweeter Depth (Without Frame): 20.1mm
- Tweeter Mounting Cup Diameter: 59mm
- Tweeter Mounting Cup Diameter Cut-Out: 43.6mm
- Tweeter Mounting Cup Depth: 15.8mm
Weight
- Woofer: 1240g
- Tweeter: 72g
- Crossover Network: 120g
