(( ACCESS ))
With Access, Focal’s innovations and audio quality is accessible to all drivers.
130 AC
Spec Sheet | Tech Sheet | Tweeter Tech | Manual

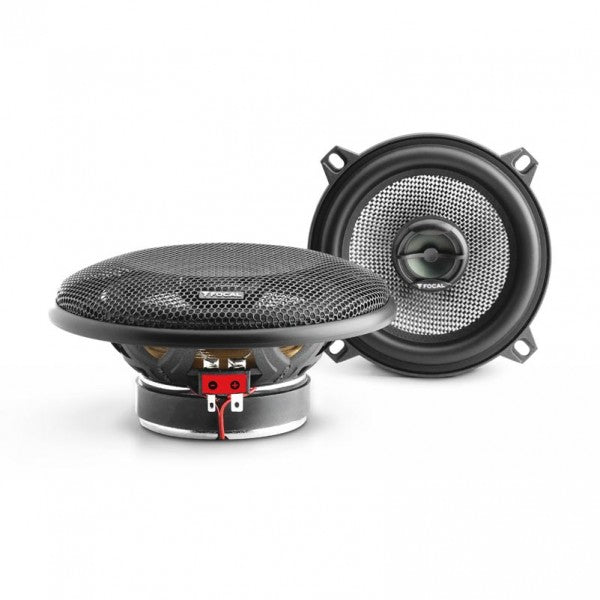

2-way 13 cm coaxial kit
With the car audio kit 130 AC and its 13-centimeter diameter, you can enjoy dynamic sound in your car. The loudspeakers deliver 50 watts of power and can be easily integrated into the front or rear of the car. They mark the accessibility to the world of performance: remarkable power handling, deep bass, extended soundstage.
DYNAMIC SOUND
Benefiting from technical innovations born of Focal know-how, the loudspeakers offer high power handling and excellent bass response. DFS® diaphragm and 85 mm high-efficiency motor, worked coil, rigid ABS frame are the elements of choice for a powerful kit.
OPTIMIZED SOUNDSTAGE
The inverted dome tweeters are mounted on a swiveling, tilting stand to create a perfect soundstage in the passenger compartment. The integrated crossover (4.7 kHz) makes installation of the entire kit easy and straightforward: connect the loudspeakers to your vehicle and enjoy renewed sound.
A COMPLETE LINE
The 2-way component kits, 2-way coaxial kits and 2-way component kits, can be combined with a subwoofer or two subwoofers for a new level of acoustic subtlety in your car. Power handling, bass response and acoustics are the common denominators of the Access range.
Sound Acoustics
- Product type : 2 -way coaxial kit
- Membrane : DFS
- Tweeter : 130 mm
- Filter : Integrated
- Frequency response (+/- 3dB) : 70Hz – 20kHz
- Maximum power : 100 watts
- Maximum SPL (peak@1m) : 86.05 DECIBEL
- Motor : Ferrite
- Nominal Impedance : 4 Ω
- Nominal power : 50 W RMS
- Sensivity : 89.3 dB
- Suspension material : Butyl
Sound Electronics
- RMS power : 50 W RMS
Design
- Product Depth: 55 mm
- Cut-Out diameter : 152.4 mm
- Weight : 850 g
Accessories
- Grids : Included
Grilles
Technologies
DFS MEMBRANE
Power handling
DFS® (Dual Fiberglass Structure) technology is made up of robust, reliable membranes. Composed of two glass fibres braided at 90° and sealed with a polyurethane coating, this material can be used in extreme acoustic and climatic conditions… It offers efficient power handling and good bass response.
INVERTED DOME TWEETER
Optimum space dispersion
The inverted dome tweeter has been a Focal signature since 1981, offering the property of being a true micro-speaker. The curvature of the dome is much less pronounced than that of positive domes. This results in better space dispersion and very low directionality, unlike ribbon tweeters. The inverted dome tweeter therefore generates unrivalled dynamics, enabling sound engineers to precisely control the dosage of compression. The precision of the image (height, width and depth) is remarkable, making it easy to position each instrument. What’s more, a waveguide has been developed to perfect spatialization and further enhance the inverted dome’s very low directionality. In the horizontal plane, the frequency response is within +/- 0.5 dB. This performance guarantees an incredibly stable soundstage.
