Image Dynamics

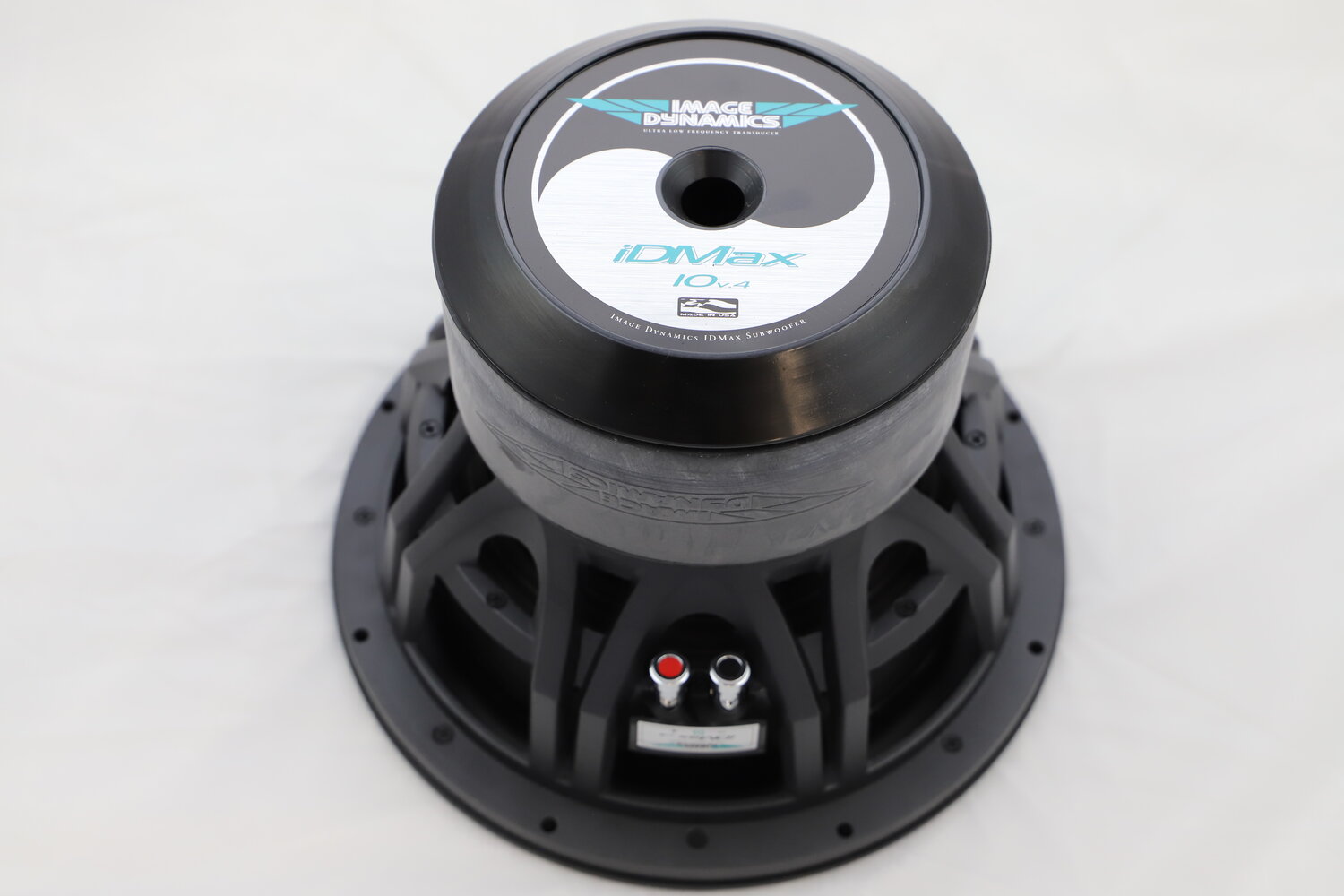

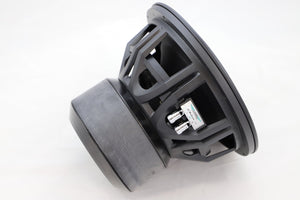

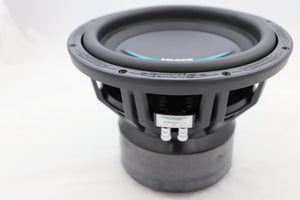

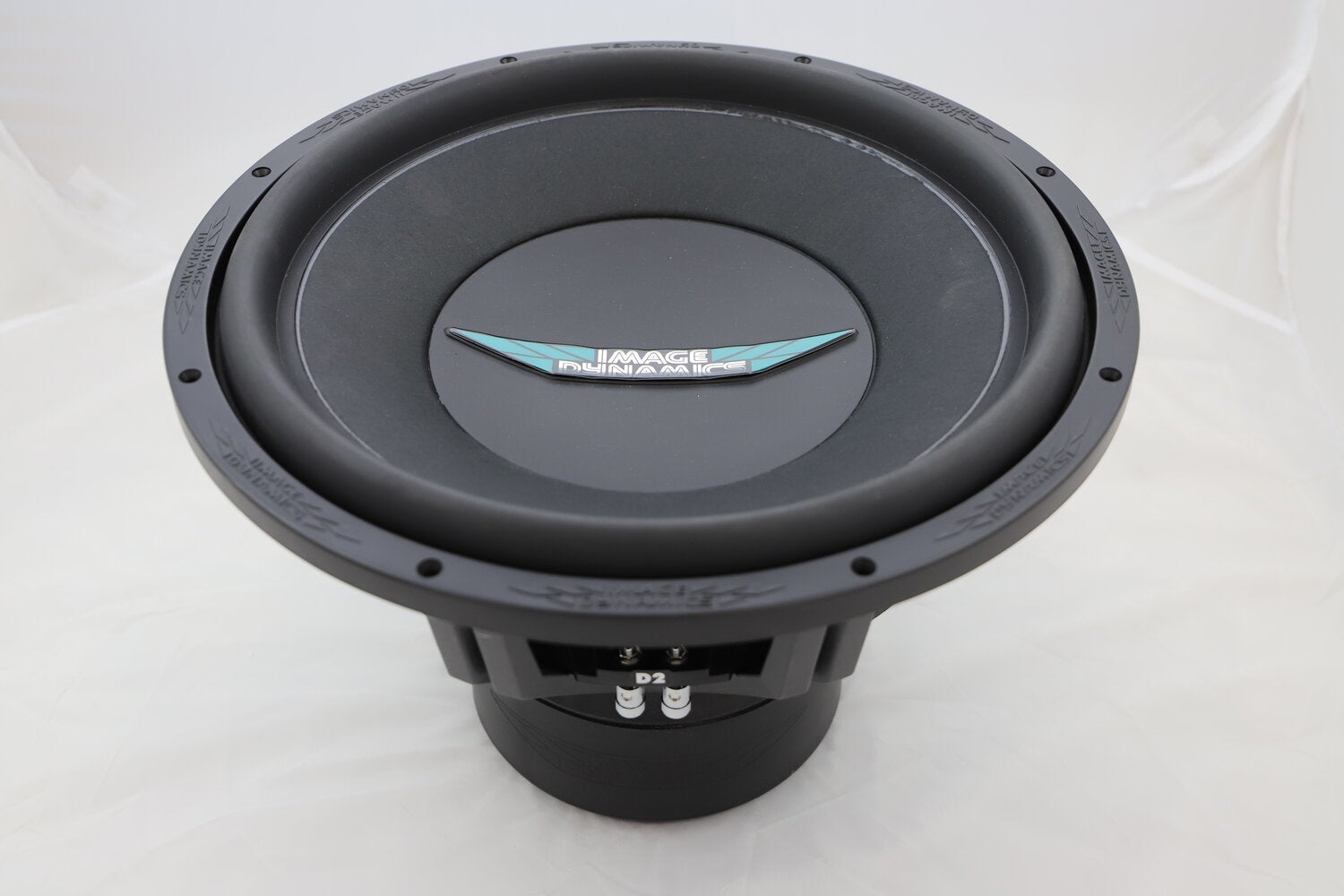

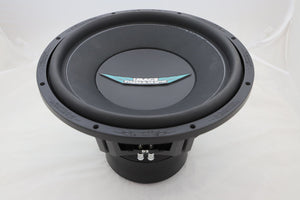

IDMax10 Dual Voice Coil 10″ Subwoofer

  • Sale
  • Regular price $897.48
Tax included.


IDMax 10″ Subwoofer, Dual Voice Coil

Description | Specification

The IDMAX subwoofers are engineered with the perfect blend of power and grace and can reproduce the subtlest of details at even the lowest of frequencies while withstanding extremely high output levels for a total performance that is simply unique. The IDMAX Subwoofer was developed with the sound enthusiast in mind that likes to listen to it clean and loud, creating unmatched levels of sound pressure level while maintaining total tonal control. This is what sets this subwoofer apart from the rest.

Additional Information:

  • High Excursion Design allows acoustically linear bass output at all rated power levels.

  • Parabolic Santoprene Surround to ensure cone linearity and control.

  • Glass fibre / pulp cone for low distortion and natural sound reproduction.

  • Nomex spider for consistent control throughout the piston range and life of the woofer.

  • Aluminium neck joint allows the woofer to handle more power without any mechanical failure or flex while pulling heat away from the voice coil.

  • American made flat wound extended voice coil results in more magnetic flux and a huge 1.8” of linear travel in the gap.

  • Extended Y-35 motor structure allows the voice coil to move freely without any mechanical bottoming out while producing a very powerful flux field.

  • Field replaceable cone assembly can be changed in 10 minutes with only 16 screws and alignment shims that come with our re-cone kits

  • American Made Flat Wound Extended Voice Coil gives our woofers higher magnetic flux (strength) and more voice coil “traction” in the magnetic gap with over 1.75” of linear travel.

  • Extended Y-35 Motor Structure allows the voice coil to move freely without any mechanical bottoming-out while producing a very powerful flux field.

  • Field Replaceable Cone Assembly can be changed in 10 minutes with only 16 screws and alignment shims that come with our re-cone kits.

  • 1000 Watts Rms power rating

  • Recommend sealed enclosure size: 14-42L

  • Recommend ported enclosure size: 28-57L
